Long life Automatic EPS compactor polystyrene compactor

  • >=1 Sets
    $10,000.00
Model Number:
CF-CP380
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Chinafor
Condition:
New
Dimension(L*W*H):
3800x1200x2100
Certification:
CE
Key Selling Points:
Automatic
Applicable Industries:
Hotels, Building Material Shops, Farms, Restaurant, Home Use, Food Shop, Plastic recycling industry
After Warranty Service:
Video technical support, Online support, Field maintenance and repair service
Local Service Location:
Canada, Turkey, Italy, France, Germany, Philippines, Pakistan, Spain, Thailand, Japan, Morocco, South Korea, Colombia, South Africa
Showroom Location:
None
After-sales Service Provided:
Engineers available to service machinery overseas
Certificate:
CE
Control System:
Touch Screen+PLC
Plastic Type:
EPP EPS EPE PSP
Capacity:
150-200kg/h
color:
customize
Product name:
Compacteur en polystyrene
Final product:
Foam Blocks
Keyword:
Polystyrene Compactor
Working principle:
Hydraulic Compacting
Warranty:
1 year
Supply Ability
Supply Ability:
10 Set/Sets per Month Efficient,Fast,Guaranteed
Packaging & Delivery
Packaging Details
Wooden case with film Compacteur en polystyrene.
Port
Shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 20 To be negotiated
Video Description
Product Description
Zhangjiagang Chinafor Machinery Co., Ltd. is always specialized in waste briquetting machines for various waste EPS,EPP,EPE,XPS,PUR, PSP, cans, films and bottles. We produce a wide range of waste recovery compressors. All compressors produced by Chinafor Machinery are produced in Qinfeng's own factory in Zhangjiagang,China.

Plastic compactor

Polystyrene compactor is a machine to reduce the size of expanded polystyrene foam and expanded polypropylene foam for easier transportation. It is also known as Compactador de poliestireno and Compacteur en polystyrène. It is widely used in sea food processing plant,electronic factories, White goods and black goods stores, and the supermarkets. Recycling Compacting Machine for Styrofoam makes it profitable for municipalities and businesses To recycle EPS/EPP/EPE/XPS.

Styrofoam compactor Features:

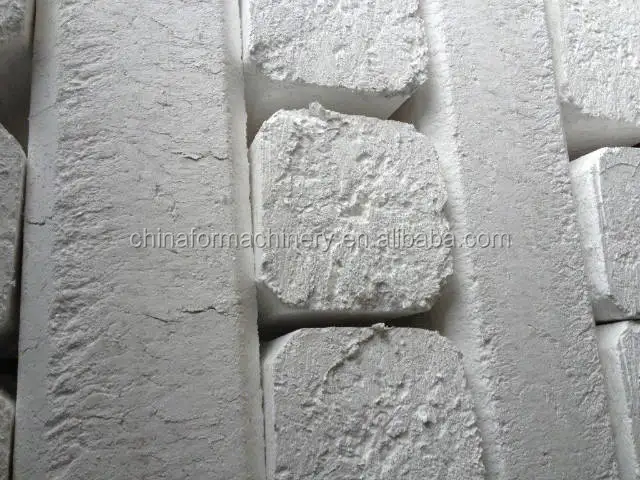

1. Compacting waste styrofoam blocks with a density of 200-250kg/m3. 2. Save costs for transport and land fill. 3. Save space and handling by dealing with the EPS in a quick and efficient manner. 4. Generate income from sales of the compacted EPS blocks, save power consunption. 5. No heat is added to the process.
Product Paramenters

EPS compactor CF-CP380

The following sizes are for reference and special requirements can be discussed in detail.
Model
Polystyrene compactor
Capacity
150-200kg/h
Srew diameter
Φ350mm
Srew speed
36rpm
Main motor power
15kw
Hydrauliac motor power
1.5kw
Crusher motor power
2.2kw*4
Blades quality
10+9+10+9sets
Blades ratation speed
120rpm
Prosuction size
380x380mm
Working Process

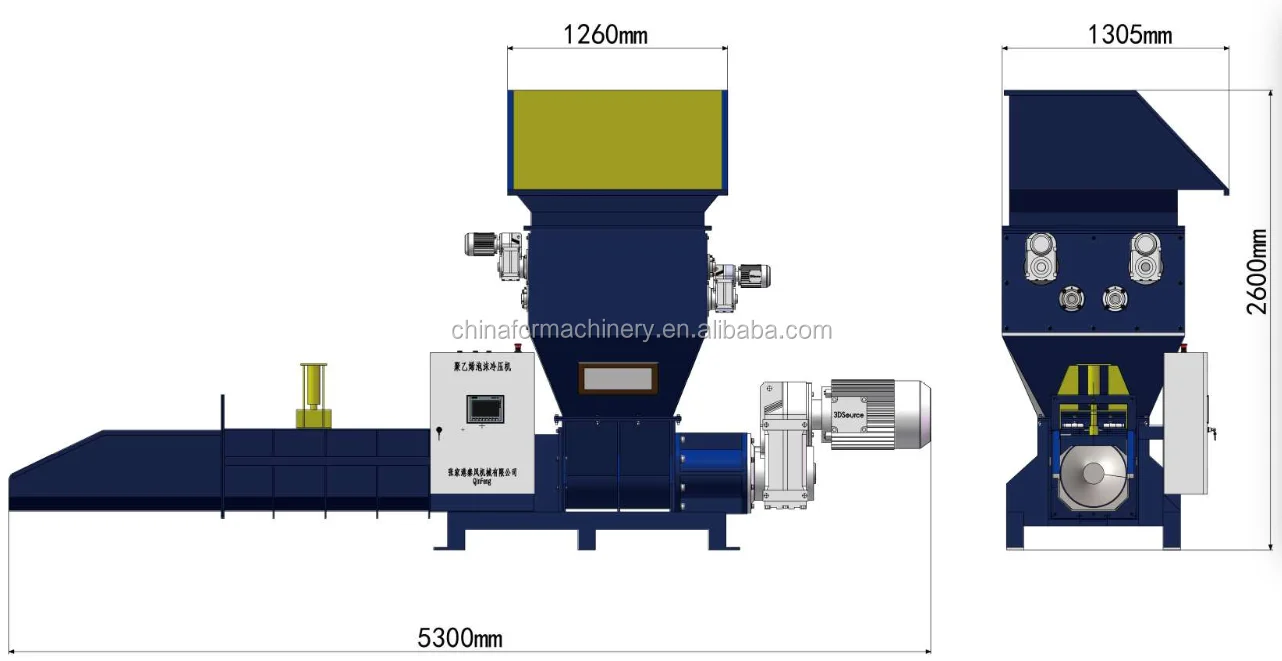

1,Hopper 2,Crusher 3,Extruder 4,Touch screen electricity control box

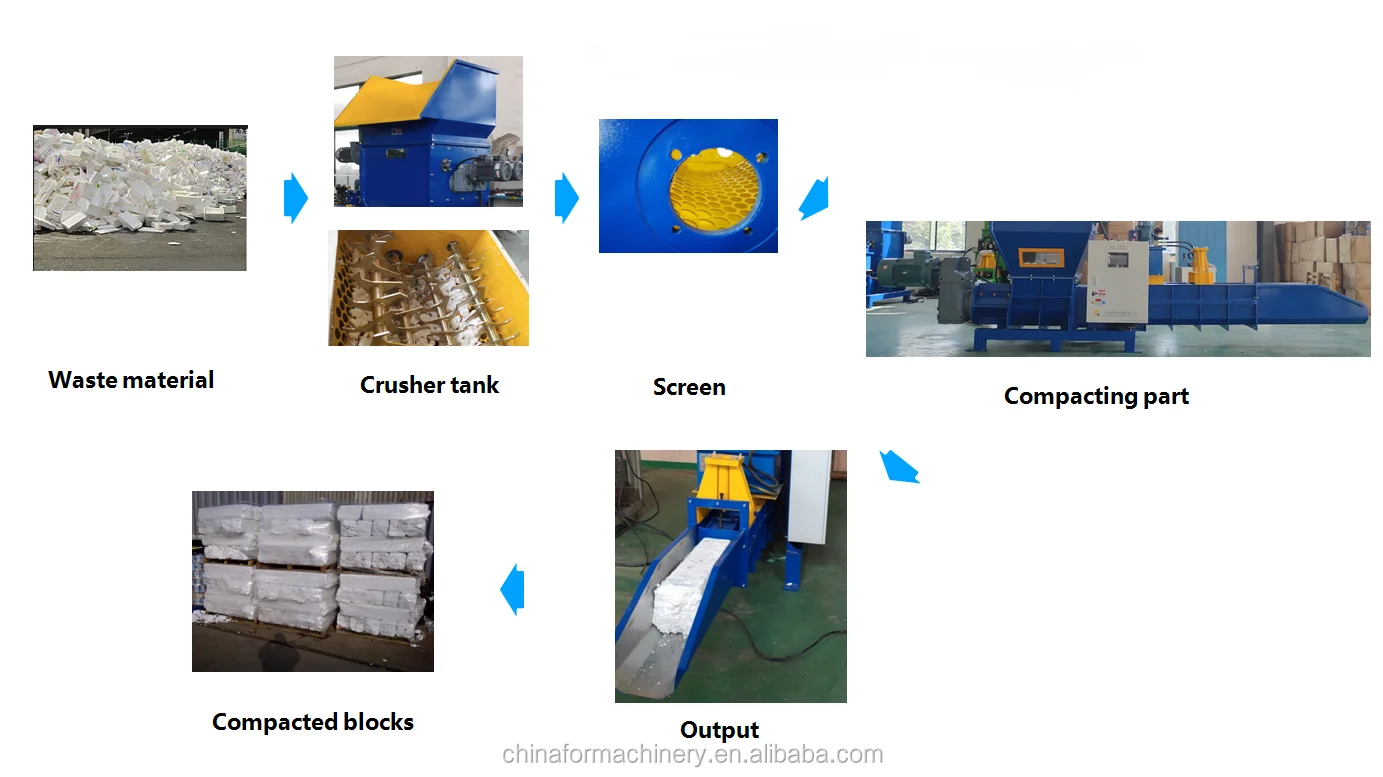

Working Principle:

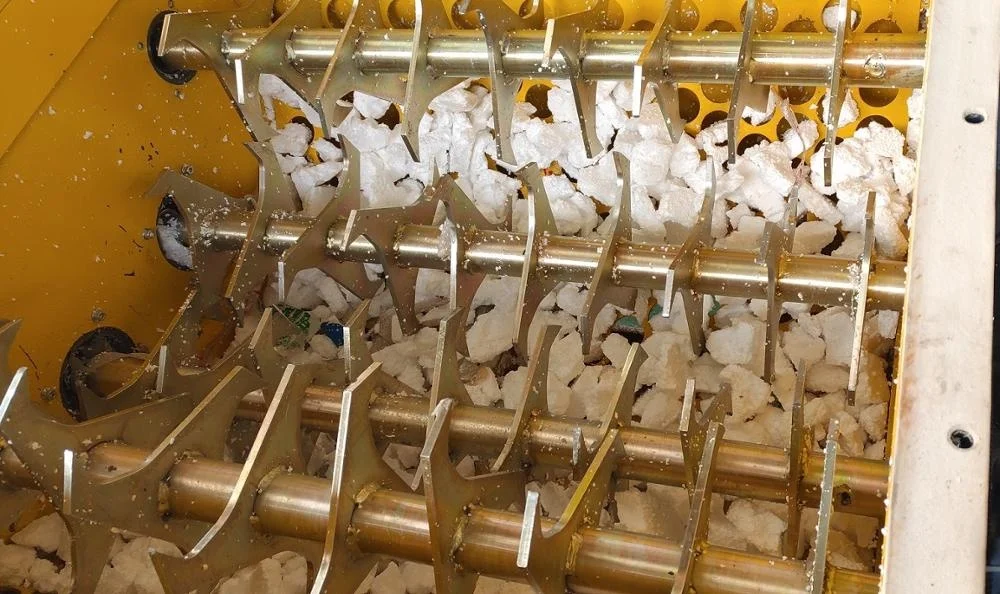

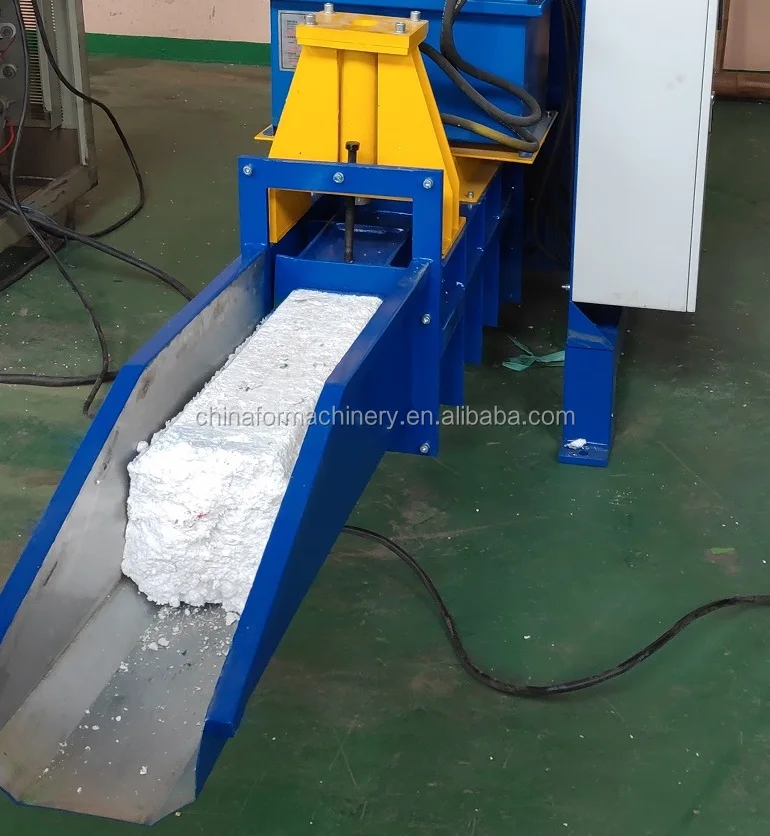

1,The waste material will be feed into the crusher on conveyer belt. 2,The foam material will be crushed by the blades and then fall down to the screw. 3,The material will be filtered by the screen under the blades, to ensure that only the small piece material will get into the screw. 4,And then the material will be pushed by the screw to the output mouth,and there is a hydraulic cylinder to press the material on the outlet to make the material into blocks. 5,Then the customer can get the screw compacted blocks. And if the customer needs, we can also offer the cutter to cut the blocks.

Advantages:

1. Lower noise——machine drives by gearbox,not the belts. 2.Safe——The inlet height is in accordance with safety standards;The reducer drives the machine to operate safely and efficiently,And there is emergency stop and the overload switch in the control system. 3.Have nice after-sale service——Provide installation and debugging if the customer needs;12 months warranty. 4.Cost-effective——We offer the customer good quality machines, but in a very reasonable price. 5.Long life——After one year , we will serve the customer continually and the machine can running well for a long time. Our first machine is still running well now. 6.Optional Electrical elements——IWe can set in the machine according to the customer’s requirement.
Detailed Images

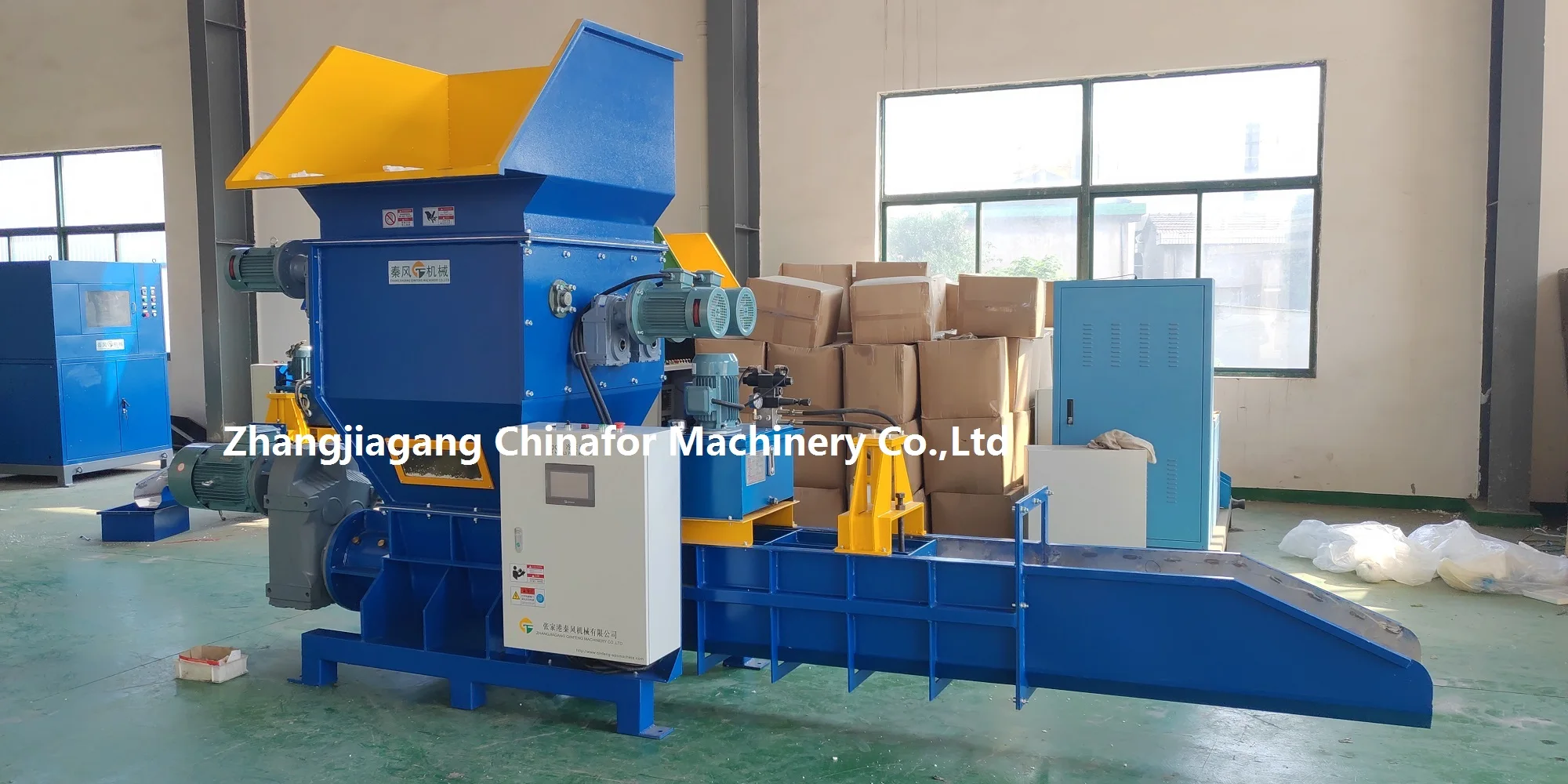

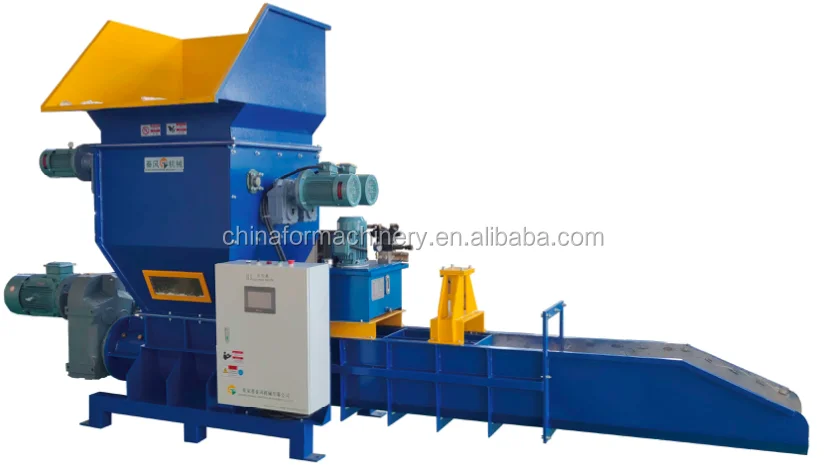

CF-CP380 compacteur eps
Related Products
Packing&Shipping
FCL delivery, directly wrap film package packing; LCL, wrap with wrapping film first, then pack in wooden case, the wooden case is fumigation-free, in line with export requirements. (The equipment can be packaged according to customer's requirement)FOB Shanghai.

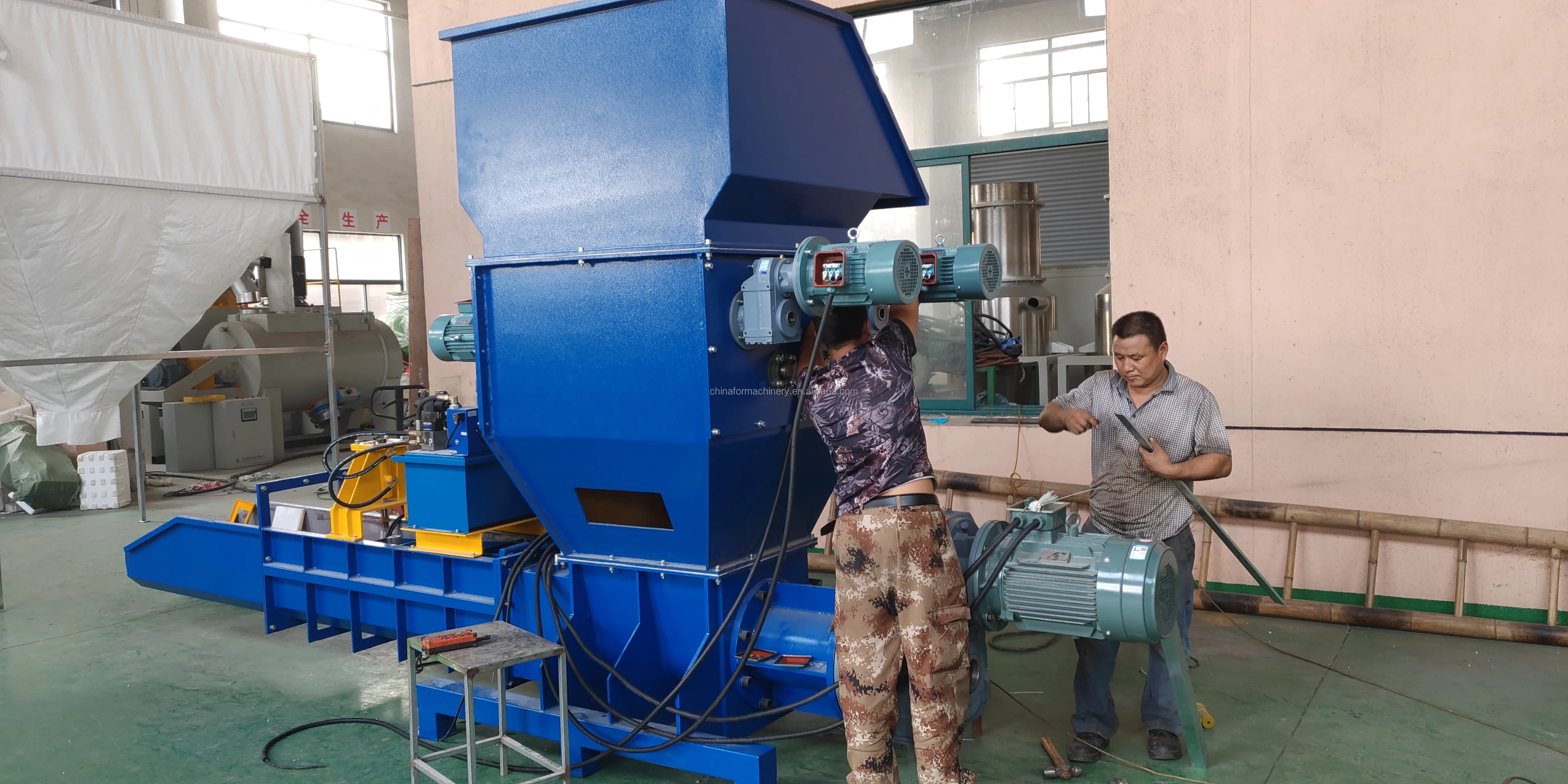

After Sales Service

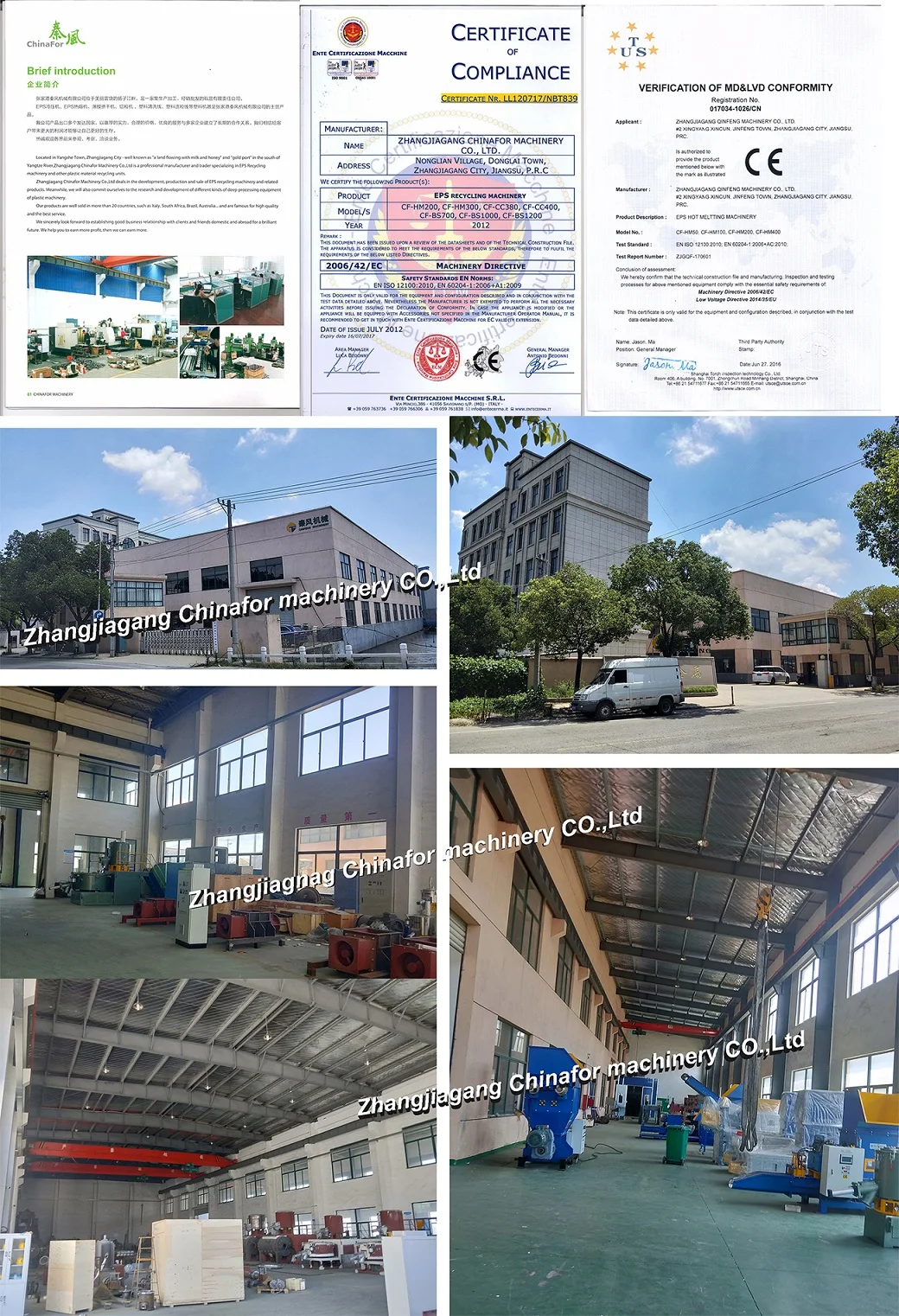

Company Introduction
ZhangJiaGang Chinafor machinery Co.,Ltd is located near the “Golden Waterway of the YangTze River” in the city of ZhangJiaGang,two hours drive from ShangHai Pudong International Airport. Since 2010 Chinafor Machinery produce many types of compactors for waste recycling. Wet waste can be dewatered (Film Squeezer), foam waste can be reduced the space to save the transportation cost,and the compacted material can be pelletized again to resuse.All the compactors are produced at Chinafor own workshop in Zhangjiagang,China.Chinafor Machinery is the leading on the market for the waste compactors, with the extensive knowledge and experience, we continuous development the compactor machine for waste materials and export to different countries. Chinafor Machinery Warmly welcome you visit and let’s make the win-win cooperation to build a good future for the earth.
Welcome to inquiry and visit our company!
