polystyrene hot melting machine plastic melting machine plastic melter/densifier

FOB Reference Price:Get Latest Price
$1,000.00 - $10,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 30 Negotiable
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)


Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Key Selling Points:
Applicable Industries:
Hotels, Building Material Shops, Farms, Restaurant, Home Use, Food Shop, Plastic recycling industry
After Warranty Service:
Video technical support, Online support, Field maintenance and repair service
Local Service Location:
United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia
Showroom Location:
Product name:
plastic melter/densifier
plastic melter/densifier
Plastic Type:
Waste Plastic
Final product:
Foam Ingots
220v 380v 400v 480v 440v (customized)
Melting Compactor
Working principle:
Hot Melting
Plastis Recycling
Supply Ability
Supply Ability:
10 Set/Sets per Month polystyrene hot melting machine
Packaging & Delivery
Packaging Details
Wooden case with film polystyrene hot melting machine
Picture Example:
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 30 To be negotiated
Product Description
Zhangjiagang Chinafor Machinery Co., Ltd. is always specialized in waste briquetting machines for various waste EPS,EPP,EPE,XPS,PUR, PSP, cans, films and bottles. We produce a wide range of waste recovery compressors. All compressors produced by Chinafor Machinery are produced in Qinfeng's own factory in Zhangjiagang,China.
Product Application In recent years,Recycling of waste plastic regeneration in the ascendant. The EPS s Wide use in the packaging industry, but it is bulky and difficult to transport.With the tenet of reducing the pollution caused by waste plastic and improving human being living environments, Qinfeng Machinery developed the new style plastic melting machine EPS plastic compactor successfully and formed her own feature in the field of waste EPS recycling, after numerous and continuous tests and researches. In order to avoid the secondary pollution to the water and environments made by the recycling machines, Qinfeng Machinery organized research personnel again to solve this technical problem and realized the upgrade of the waste plastic recycling machines with the guiding ideology of reducing secondary pollution. This EPS melter is High-performance, space saving, easy to transport the finished produce. The operation is pollution-free, can protect the environment, and avoid the secondary pollution. Complete reuse the waste plastic and create interest.
Main Features 1) Simple structure in linear type ,easy in installation and maintain. 2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts. 3) Easy -operating, high efficiency. 4) Running in a high automatization and intellectualization,no pollution 5) Apply a conveyor to the machine ,which can directly raise production.
Product Paramenters
EPS hot melting machine CF-HM 200 The following sizes are for reference and special requirements can be discussed in detail.
CF-HM-200 plasatic melter densifier
Screw diameter
φ197 mm
Screw distance
150 mm
Screw speed
110 r/min
Extrusion center height
326 mm
Motor power
Crusher motor power
Heating power
Crusher blades quantity
2Sets 9sets+10sets
Crusher rotation speed
Size L×W×H
Working Process
1,Hopper 2,Crusher 3,Extruder 4,Mould 5,Electricity control box
Plastic melter densifier Working Principle: The twin shaft crushing blades are two parallel blades shaft with different rotation direction , each blade shaft has 18 blades and driven by the gear box to crush material that will be conveyed to the barrel through the screen. The material will be sent by the high speed rotary screw to the heating barrel. Then they will be melted under high temperature extruded to expected sharps.
Plastic melting machine Crusher technical : The tilted feeding hopper is easy to put the EPS material in,and the material won't be pushed out during the crushing process. The plastic recycling machine use twin shaft crushing blades, two parallel blade shafts symmetrically fixed with blade,the blade on the two blade shafts is dislocation arrangement, and the blade of each shaft is evenly arranged in the axis of the knife with arithmetic point of view in the same direction. The first blade and the last blade of each shaft has a 90°angle.
Advantages: 1. Lower noise——machine drives by gearbox,not the belts. 2.Safe——There is a protective cover at the outlet;The inlet height is in accordance with safety standards;The reducer drives the machine to operate safely and efficiently,And there is emergency stop and the overload switch in the control system. 3.Have nice after-sale service——Provide installation and debugging if the customer needs;12 months warranty. 4.Cost-effective——We offer the customer good quality machines, but in a very reasonable price. 5.Long life——After one year , we will serve the customer continually and the machine can running well for a long time. Our first machine is still running well now. 6.Optional Electrical elements——Inverter(when install inverter,it can deal with different type material:EPS,EPP,EPE.) and the other elements we can set in the machine according to the customer’s requirement.
Detailed Images

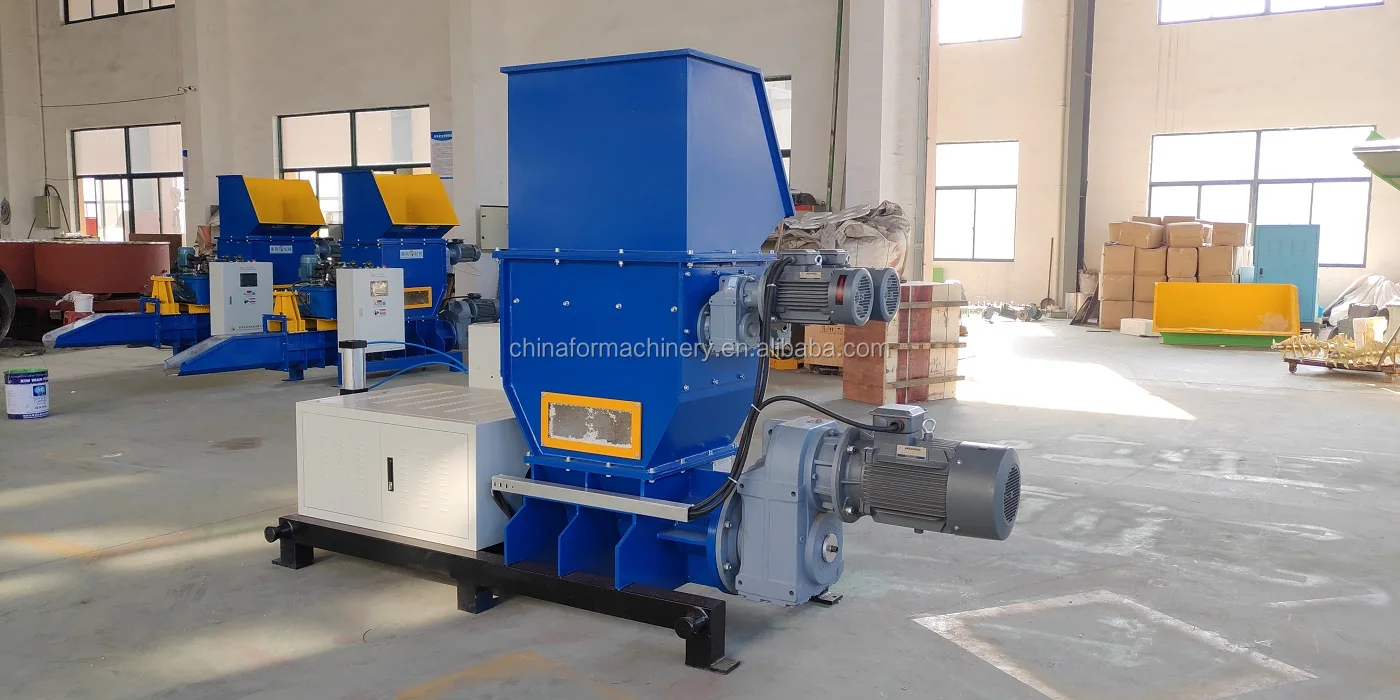

EPS hot melter CF-HM 200
Related Products
FCL delivery, directly wrap film package packing; LCL, wrap with wrapping film first, then pack in wooden case, the wooden case is fumigation-free, in line with export requirements. (The equipment can be packaged according to customer's requirement)FOB Shanghai
After Sales Service
Company Introduction
Zhangjiagang Chinafor Machinery Co.,Ltd is located near the “Golden Waterway of the YangTze River” in the city of ZhangJiaGang,two hours drive from ShangHai Pudong International Airport. Zhangjiagang Chinafor Machinery Co.,Ltd is a professional manufacturer and trader specializing in EPS recycling machinery,Plastic Mixing,Plastic Bottle Recycling,Plastic Extruder,Plastic Shredders ,we producting many types of recycling machine for waste recycling.Our boss has been a mechanical engineer for over twenty years.Chinafor Machinery is the leading on the market for the waste compactors, with the extensive knowledge and experience, wecontinuous development the compactor machine for waste materials and export to different countries.
Welcome you visit our company and inquiry me.
