Two shaft Shredder for film CF-TS series plastic shredder machine used in industry

  • >=1 Sets
    $10,000.00
Model Number:
CF-TS
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)

More

Customized logo (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China
Plastic Type:
PP/PE
Max.Production Capacity (kg/h):
15000
Production Capacity (kg/h):
100 - 7000
Brand Name:
Chinafor
Use:
Waste Plastic Crusher
Voltage:
380V
Dimension(L*W*H):
1834X1561X1735
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Applicable Industries:
Hotels, Building Material Shops, Farms, Restaurant, Home Use, Construction works , recycling industry
Key Selling Points:
Automatic
After Warranty Service:
Video technical support, Online support, Field maintenance and repair service
Local Service Location:
Canada, Turkey, United Kingdom, United States, France, Spain, Japan, Australia, South Korea, Colombia, Romania
Showroom Location:
None
Marketing Type:
New Product 2020
Machinery Test Report:
Not Available
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Bearing, Motor, Gearbox
Name:
Two shaft Shredder for film CF-TS series
Application:
Recycled Industry
Keyword:
Two Shaft Shredder
Usage:
Waste Raw Material Shredding
Color:
Client's Requirements
Raw material:
Plastic Products Paper Wood Metal Product
Final product:
Small Scraps
Used for:
Waste Shredding
Type:
Two Shaft
Function:
Broken Waste
Shaft Design:
Double
Supply Ability
Supply Ability:
10 Set/Sets per Month two shaft shredder
Packaging & Delivery
Packaging Details
Strength film and bubble film packed for Two shaft Shredder for film CF-TS series plastic shredder machine used in industry.
Port
Shanghai two shaft shredder
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 To be negotiated
Product Description
We always specialize in cleaning and recycling equipment,shredder, plastic shredder, crusher, plastic crusher, tire shredder, pipe shredder, agricultural shredder machine, wood shredder,metal shredder, power crushers, pet bottle cleaning production lines, PE film cleaning lines, pp plastic cleaning lines and other waste Material recycling equipment.

Two shaft Shredder for film CF-TS series plastic shredder for sale

After several years of intensive research and borrowed the advanced experience of similar foreign products, through continuous improvement, we have successfully developed multi-purpose biaxial shredders such as new films, woven bags, fishing nets,tires,etc. Packaging film, greenhouse film, ton bag, space bag, food bag, cement bag, waste fishing net, etc.For example; the continuous crushing production of woven bags provides a solution for film recycling. In this processing technology, the waste woven bag is directly sent to the new type of dual-shaft shredder by machinery. The motor → the transmission reducer → the transmission main shaft, the N moving knives installed on the main shaft and the fixed knives installed on the frame, Tear the whole bundle of woven bags and separate the woven bag from the debris (stones, etc.) through the separation water tank to reach the recyclable raw materials.
The new film, woven bag, fishing net, tire and other multi-purpose twin shaft shredders are independently driven by two shafts, so that during production, the material is correspondingly pressed to achieve the automatic feeding function. The unique knife shaft structure and four corner rotation In the production process of low-speed and high-torque, the cutter will not entangle the shaft or jam the equipment, there by improving the production efficiency. The double shaft shredder is suitable for the crushing of various tough and viscous materials. In production, environmental protection, recycling, etc.
Product Paramenters
The following data of two shaft shredder for reference.
Model
CF-TS2260
CF-TS3080
CF-TS40100
Dimension L / W / H (mm)
2146×1805×1754
1834×1561×1735
3470×2601×2275
Crushing chamber size C / D (mm)
600×450
800×576
1000×750
Outlet height (mm)
500
535
900
Blade rotation diameter (mm)
φ232.5
φ313
φ400
Spindle speed (r / min)
82
82
74
Screen aperture (mm)
Z 25
Z40
Z 30
Number of blades (pcs)
(20+11)×2
(26×2)+(28×2)
(51+36)×2
Number of fixed knives (pcs)
4
4
4
Host power (kw)
18.5+18.5
30+30
45+45
Equipment weight (kg)
1800

4880
Big two shaft shredder
Model
CF-TS40120
CF-TS40150
CF-TS48150
Dimension L / W / H (mm)
3660×3710×2275
3860×3710×2275
3710×3860×2435
Crushing chamber size C / D (mm)
1200×750
1500×750
830×1500
Outlet height (mm)
900
900
900
Blade rotation diameter (mm)
φ400
φ400
φ480
Spindle speed (r / min)
74
74
74
Screen aperture (mm)
Z 30
Z 30
Z 30
Number of blades (pcs)
(60+42)×2
(78+54)×2
(78×2)+(54×2)
Number of fixed knives (pcs)
4
6
6
Host power (kw)
55+55
75+75
90+90
Equipment weight (kg)
5500
6500
7500
Working Process

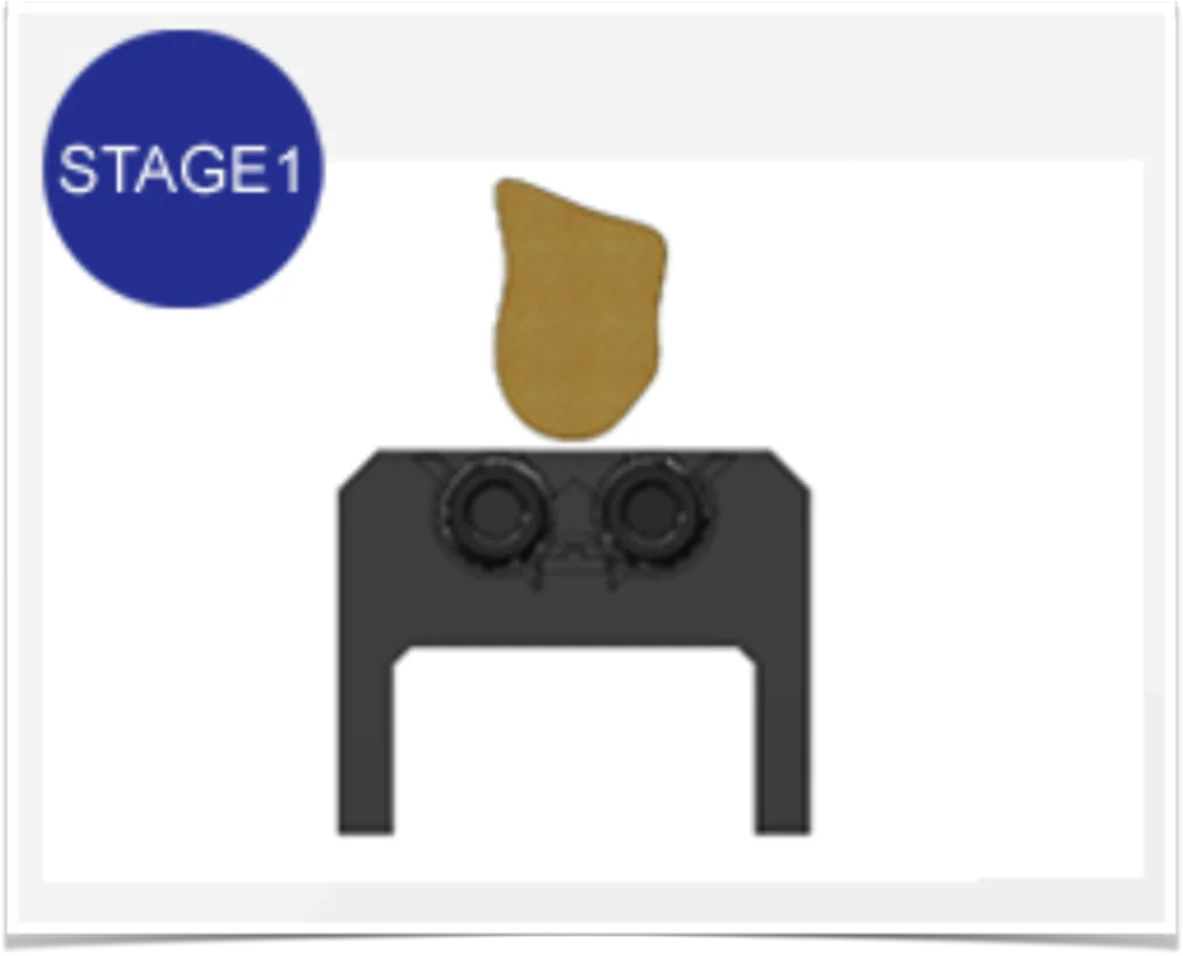

Feed the material into
the shredding tank

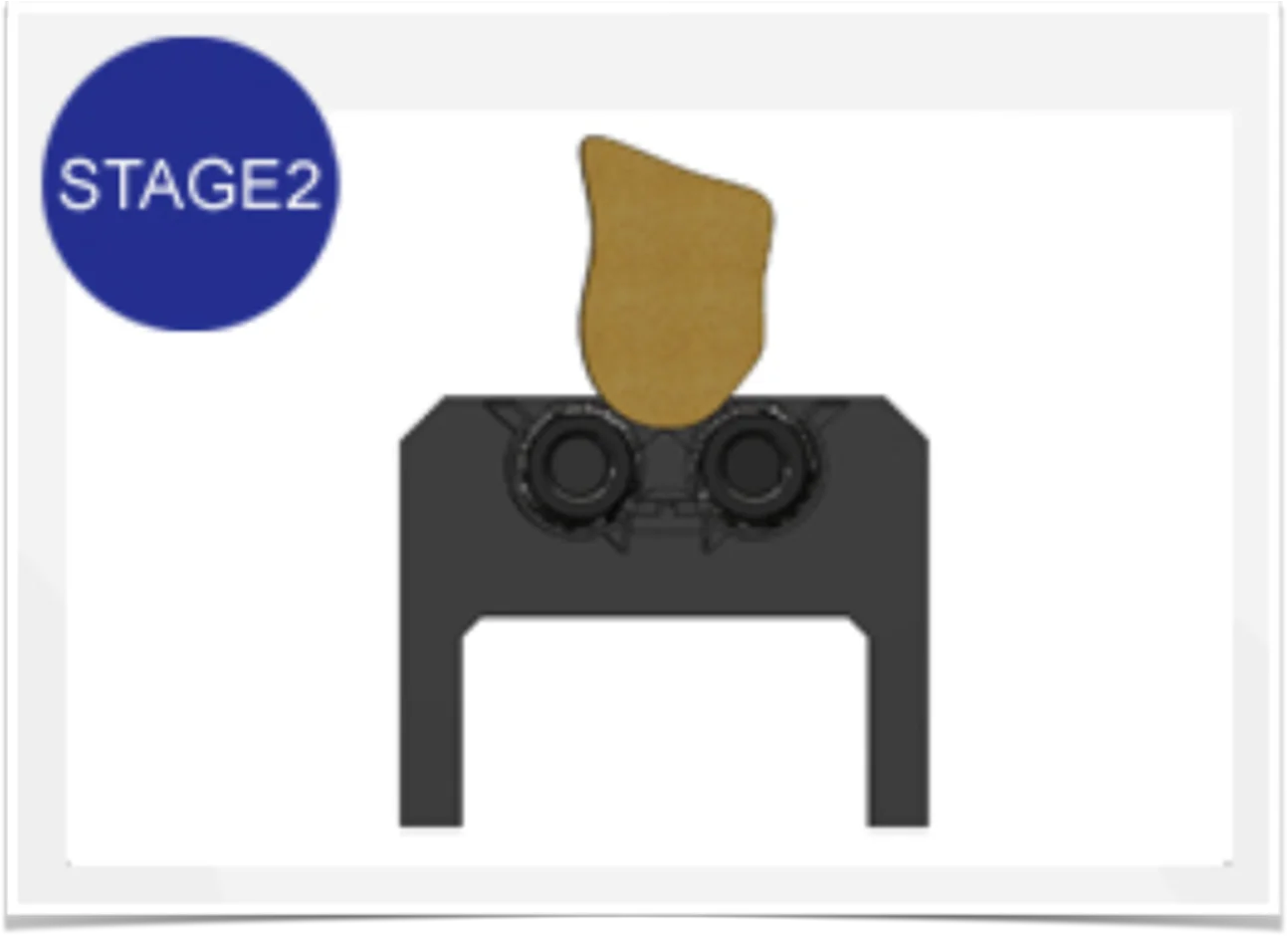

The middle rotary blades
bring the material between the blazers rotors

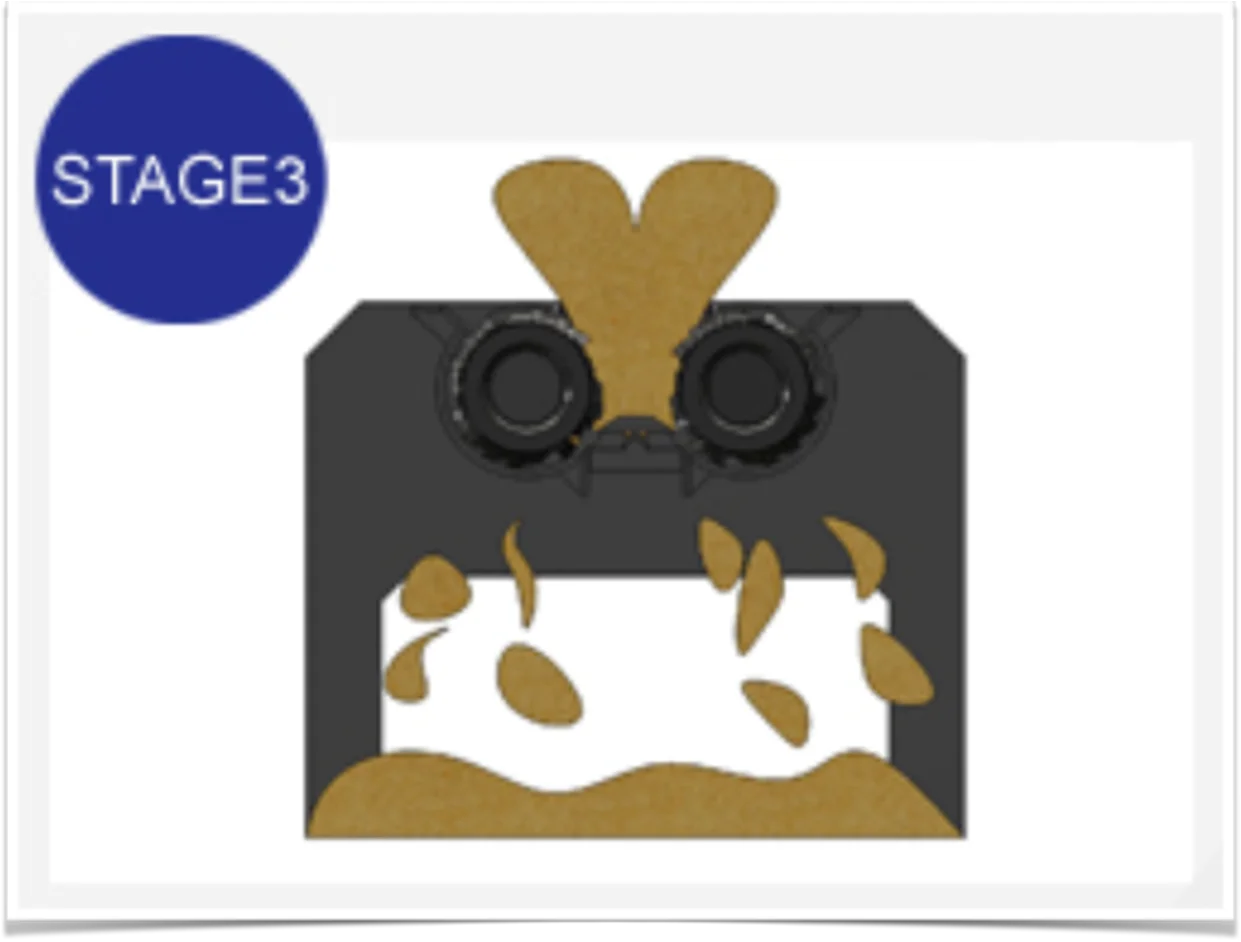

Rotate blade rotor to shred
material and discharge through filter

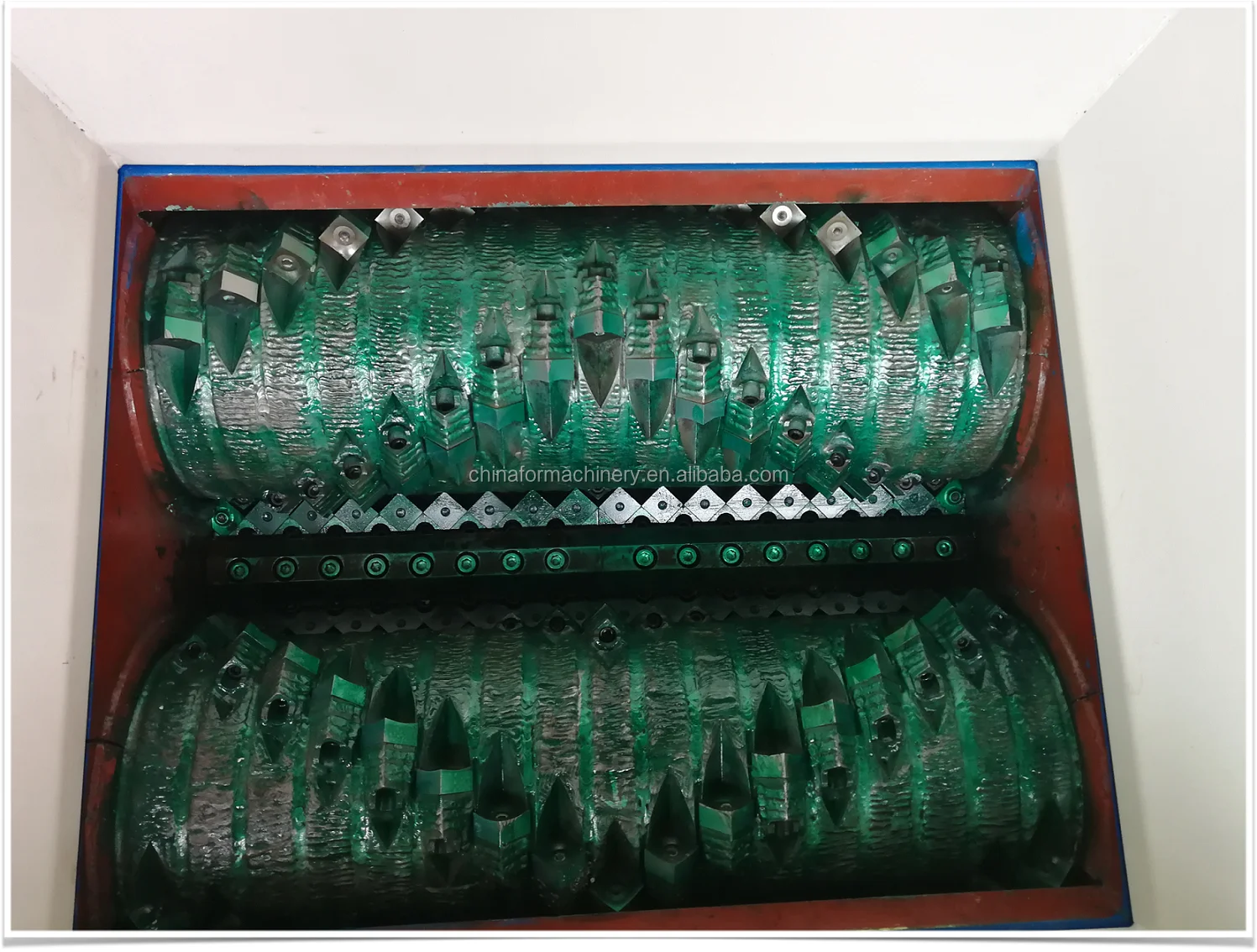

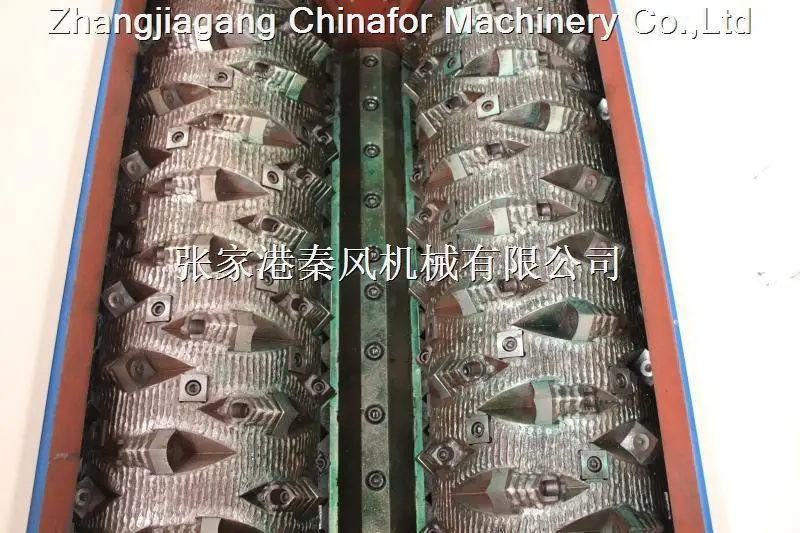

The blade is made of D2,
and all four corners can be used.
The twin shaft rotor is covered with abrasion resistant layer,Increase knife and stick life.
Details Images

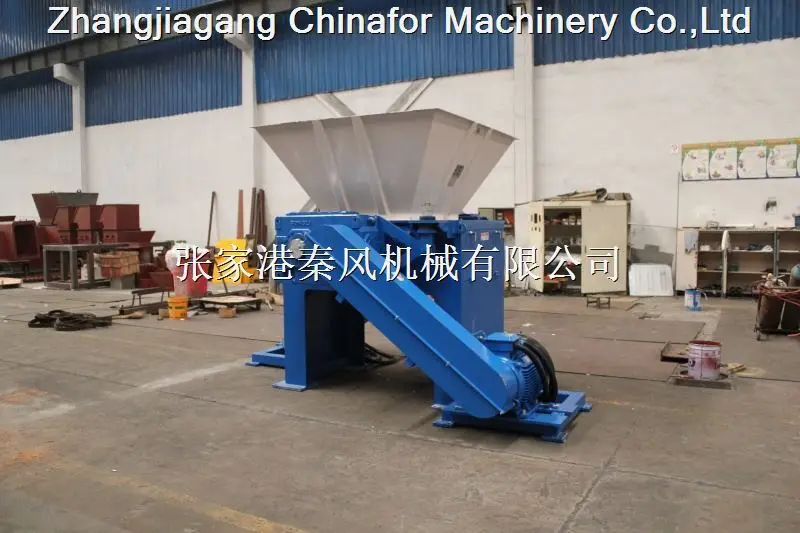

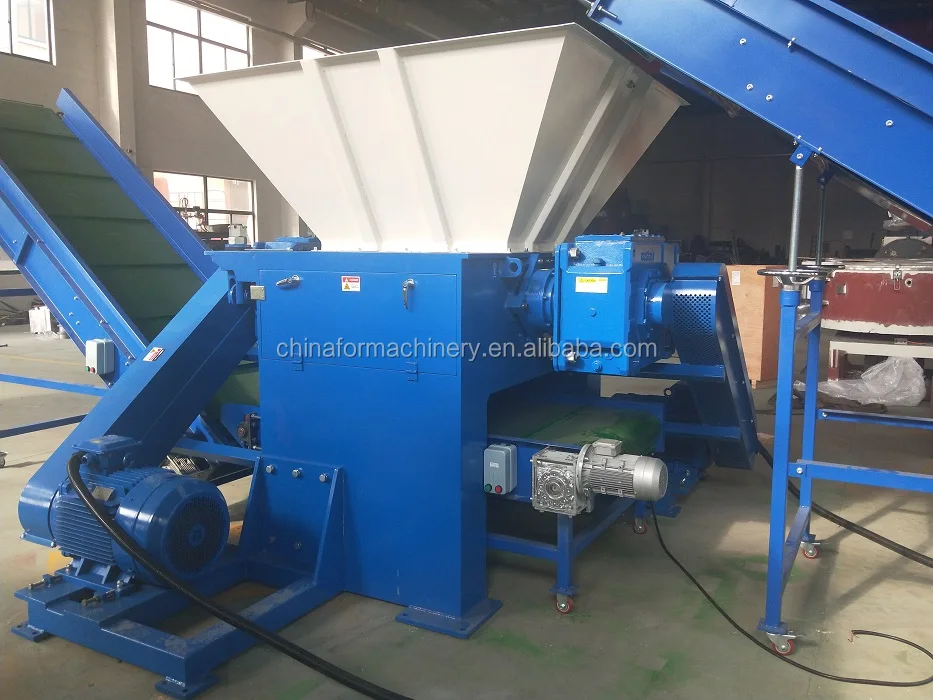

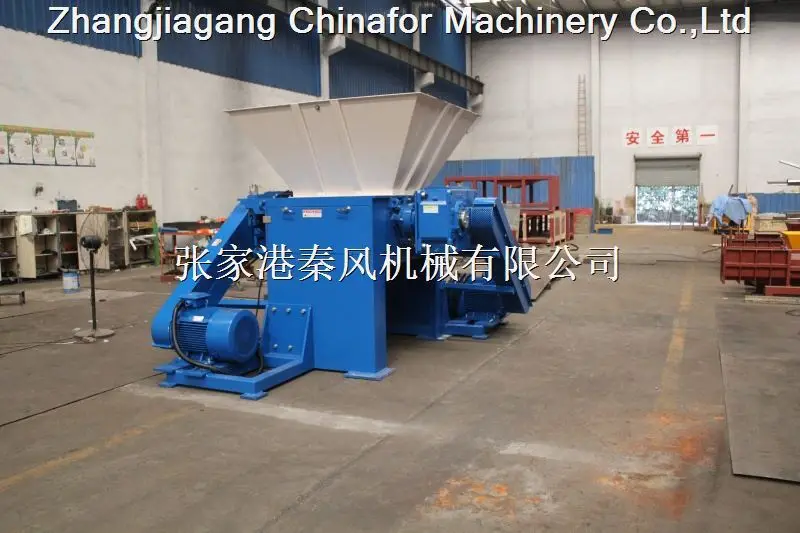

CF-TS series plastic shredder machine adopts double film knife blade structure, which has the characteristics of medium speed, high efficiency and low noise. It can meet the recycling requirements of wastes in various industries. There are many types of recyclable materials, especially suitable for materials with medium hardness and softer materials such as shred films, knitting bags, wood, paper, etc. According to different material requirements, different knife rollers can be used.
