Maquinas de reciclaje de plastico plastic melter dnsifier plastico de alta densidad

FOB Reference Price:Get Latest Price
$6,003.00 - $21,003.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
CF-NHM
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Chinafor
Condition:
New
Certification:
CE,Certificate of noise
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Key Selling Points:
High Productivity
Applicable Industries:
Hotels, Building Material Shops, Farms, Restaurant, Home Use, Construction works , recycling industry
After Warranty Service:
Video technical support, Online support, Field maintenance and repair service
Local Service Location:
Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Sri Lanka, Romania, Bangladesh
Showroom Location:
None
Control System:
Touch Screen+PLC
Capacity:
80-100kg/h
Name:
Maquinas de reciclaje para la fabrica de fritas de plastico
Colour:
Optional
Power:
29.4KW
Plastic Type:
EPS EPP EPE XPS PUR EVA
Material:
Carbon Steel
Final product:

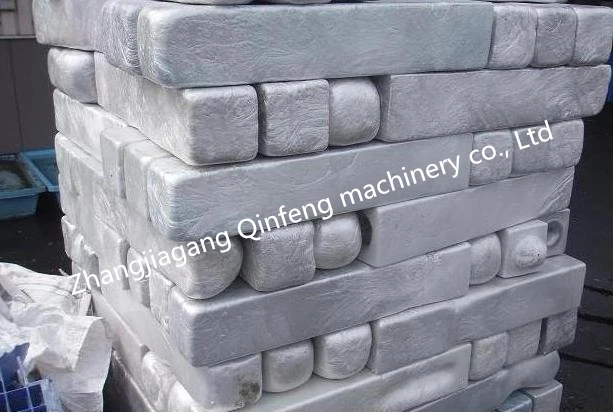

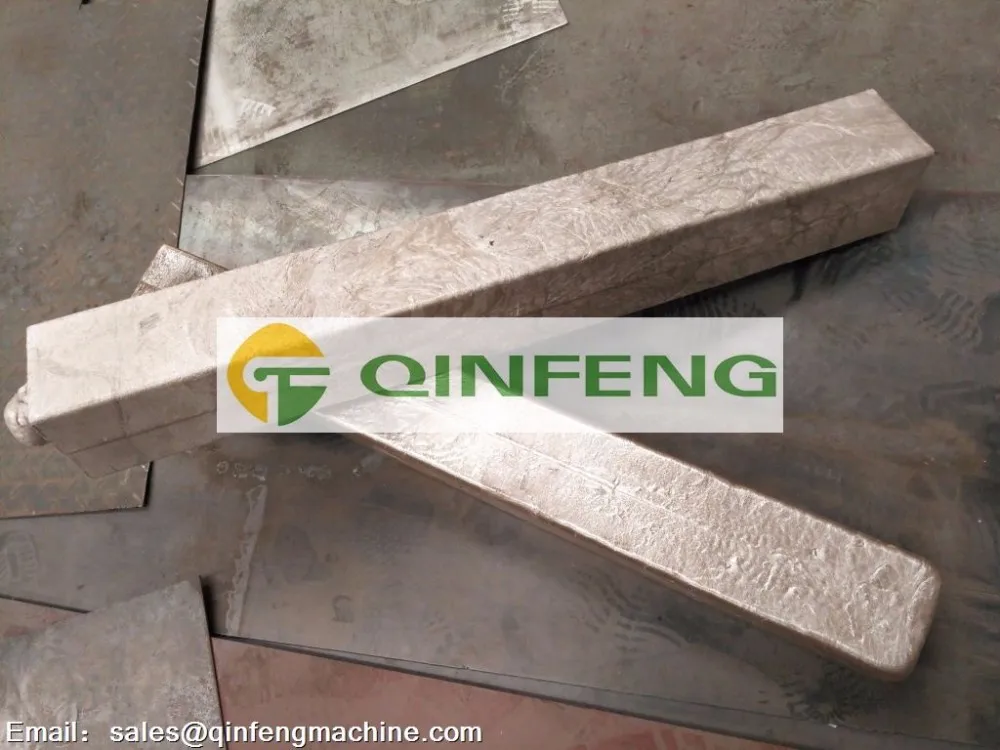

hot melted ingot,pillar blocks
Color:
Optional
Keyword:
Maquinas de reciclaje de plastico
Supply Ability
Supply Ability:
10 Set/Sets per Month Delivery time: 30 working days
Packaging & Delivery
Packaging Details
Wooden case with film packing Maquinas de reciclaje de plastico plastic melter dnsifier plastico de alta densidad.
Port
Shanghai
Picture Example:
package-img
package-img
Product Description
Zhangjiagang Chinafor Machinery Co., Ltd. is always specialized in waste briquetting machines for various waste EPS,EPP, EPE, XPS,PUR, PSP, cans, films and bottles. We produce a wide range of waste recovery compressors. All compressors produced by Chinafor Machinery are produced in Qinfeng's own factory in Zhangjiagang,China.

Product Application

In recent years,Recycling of waste plastic regeneration in the ascendant. The EPS s Wide use in the packaging industry, but it is bulky and difficult to transport.With the tenet of reducing the pollution caused by waste plastic and improving human being living environments, Qinfeng Machinery developed the new style waste EPS melter compactor successfully and formed her own feature in the field of waste EPS recycling, after numerous and continuous tests and researches. In order to avoid the secondary pollution to the water and environments made by the recycling machines, Qinfeng Machinery organized research personnel again to solve this technical problem and realized the upgrade of the waste plastic recycling machines with the guiding ideology of reducing secondary pollution. This EPS melter is High-performance, space saving, easy to transport the finished produce. The operation is pollution-free, can protect the environment, and avoid the secondary pollution. Complete reuse the waste plastic and create interest.

Main Features:

1) Simple structure in linear type ,easy in installation and maintain.
2) Adopting advanced world famous brand components in pneumatic parts,electric parts and operation
parts.
3) Easy -operating, high efficiency.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a conveyor to the machine ,which can directly raise production.
Product Paramenters
The following sizes are for reference and special requirements can be discussed in detail.
Model
CF-NHM200 Hot melting machine
Screw diameter
Φ80-120mm
Screw Length
2100mm
Screw speed
110mm
Screen hole diameter
50mm
Motor power
15kw
Heating power
10kw
Crusher motor power
2.2kw*2
Crusher blades quantity
9+10sets
Crusher rotation speed
110mm
EPS Block Size L×W×H
110*110*960mm

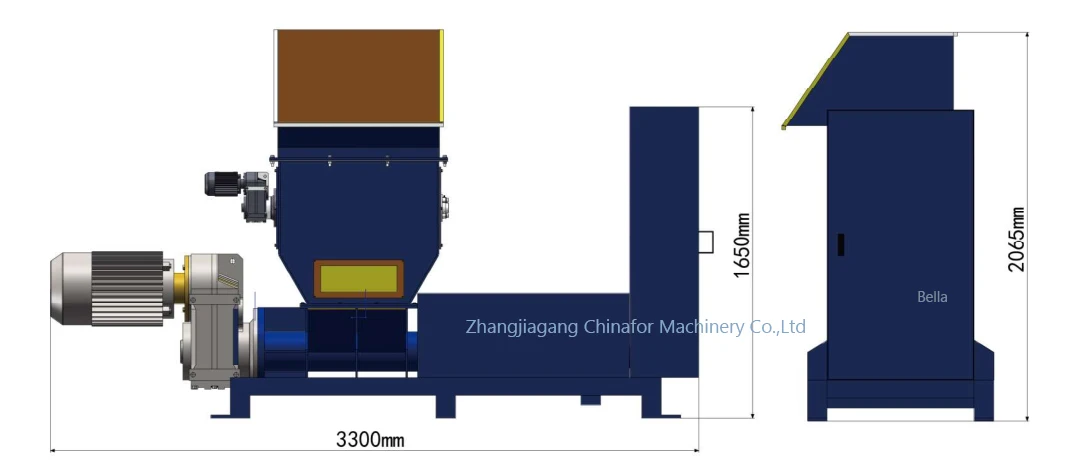

Working Process
1,Hopper

2,Crusher

3,Extruder

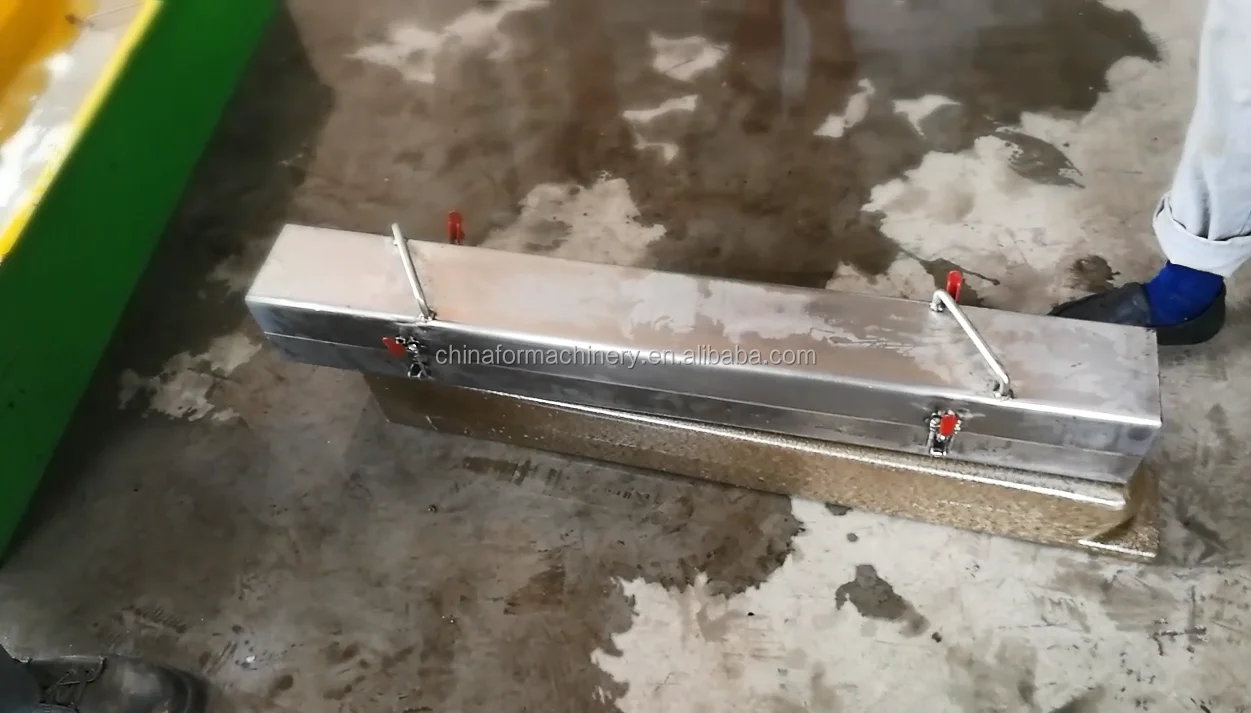

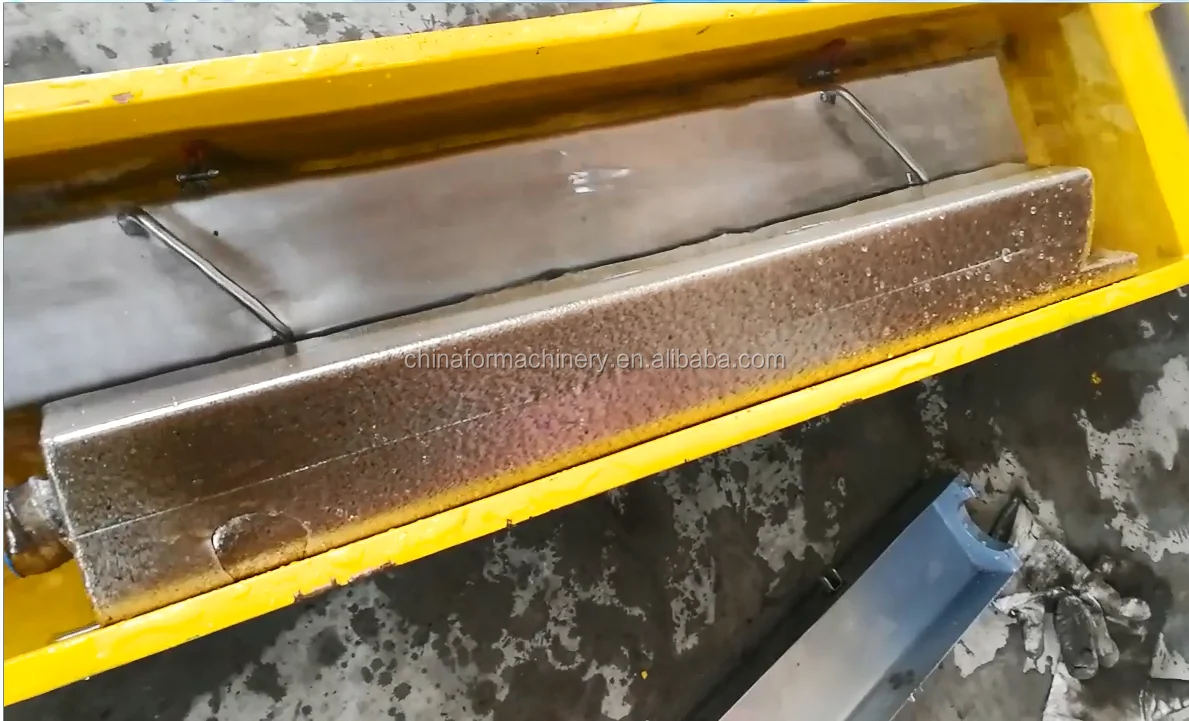

4,Mould

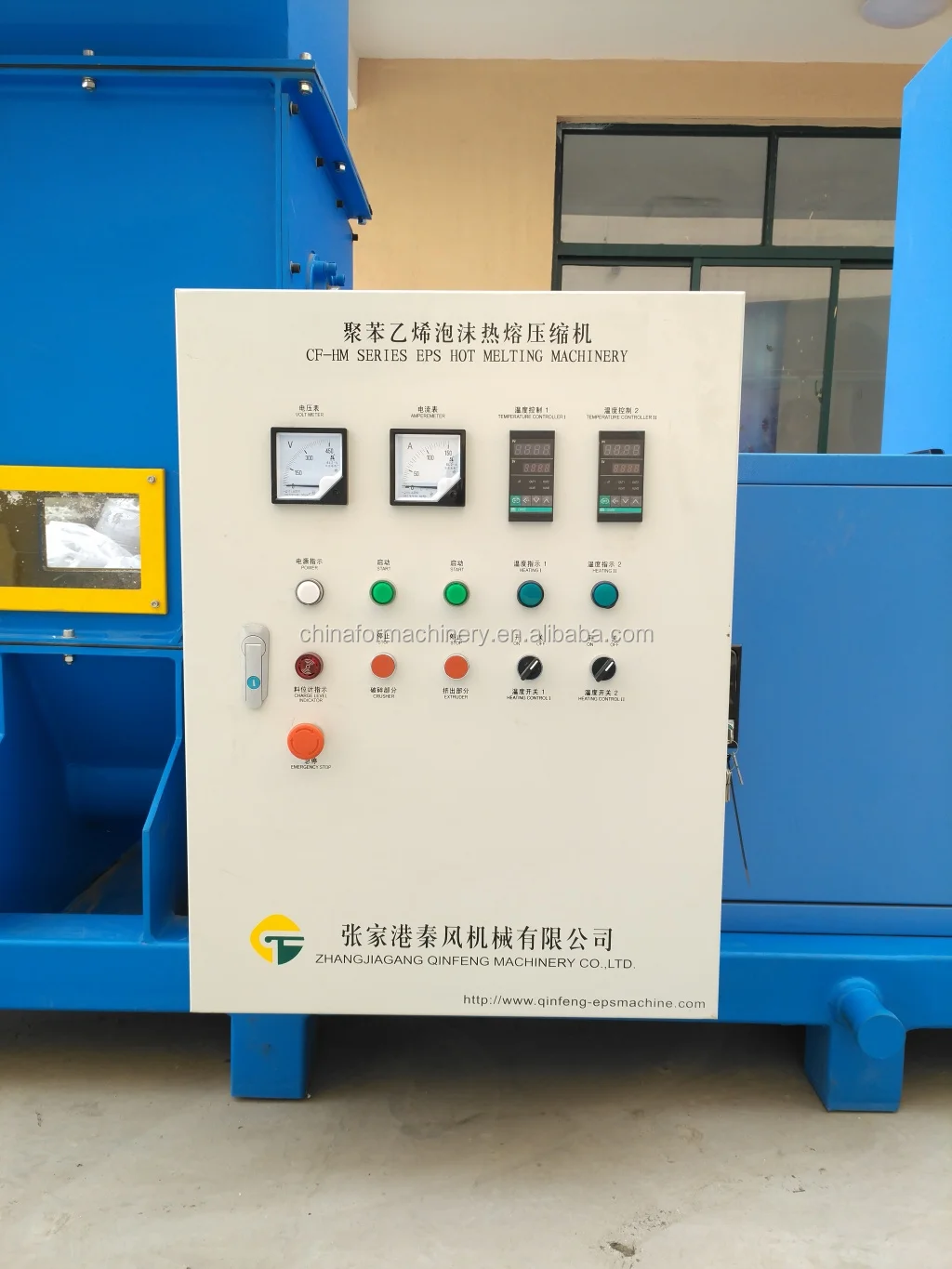

5,Electricity control box

Maquinas de reciclaje de plastico plastico de alta densidad Working Principle:

The twin shaft crushing blades are two parallel blades shaft with different rotation direction , each blade shaft has 18 blades and driven by the gear box to crush material that will be conveyed to the barrel through the screen. The material will be sent by the high speed rotary screw to the heating barrel. Then they will be melted under high temperature extruded to expected regular shape of the square l>.

Plastic melter dnsifier plastico de alta densidad Crusher technical :

The tilted feeding hopper is easy to put the EPS material in,and the material won't be pushed out during the crushing process.The Maquinas de reciclaje de plastico plastic melter use twin shaft crushing blades, two parallel blade shafts symmetrically fixed with blade ,the blade on the two blade shafts is dislocation arrangement, and the blade of each shaft is evenly arranged in the axis of the knife with arithmetic point of view in the same direction. The first blade and the last blade of each shaft has a 90°angle.

Advantages:

1. Lower noise—— Our plastic melter drives by gearbox,not the belts.
2.Safe——The inlet height is in accordance with safety standards;The reducer drives the machine to operate safely and efficiently,And there is emergency stop and the overload switch in the control system.
3.Have nice after-sale service——Provide installation and debugging if the customer needs;12 months warranty.
4.Cost-effective——We offer the customer good quality machines, but in a very reasonable price.
5.Long life——After one year , we will serve the customer continually and the machine can running well for a long time. Our first machine is still running well now.
6.Optional Electrical elements——Inverter(when install inverter,it can deal with different type material:EPS, EPP,EPE.) and the other elements we can set in the machine according to the customer’s requirement.
Detailed Images

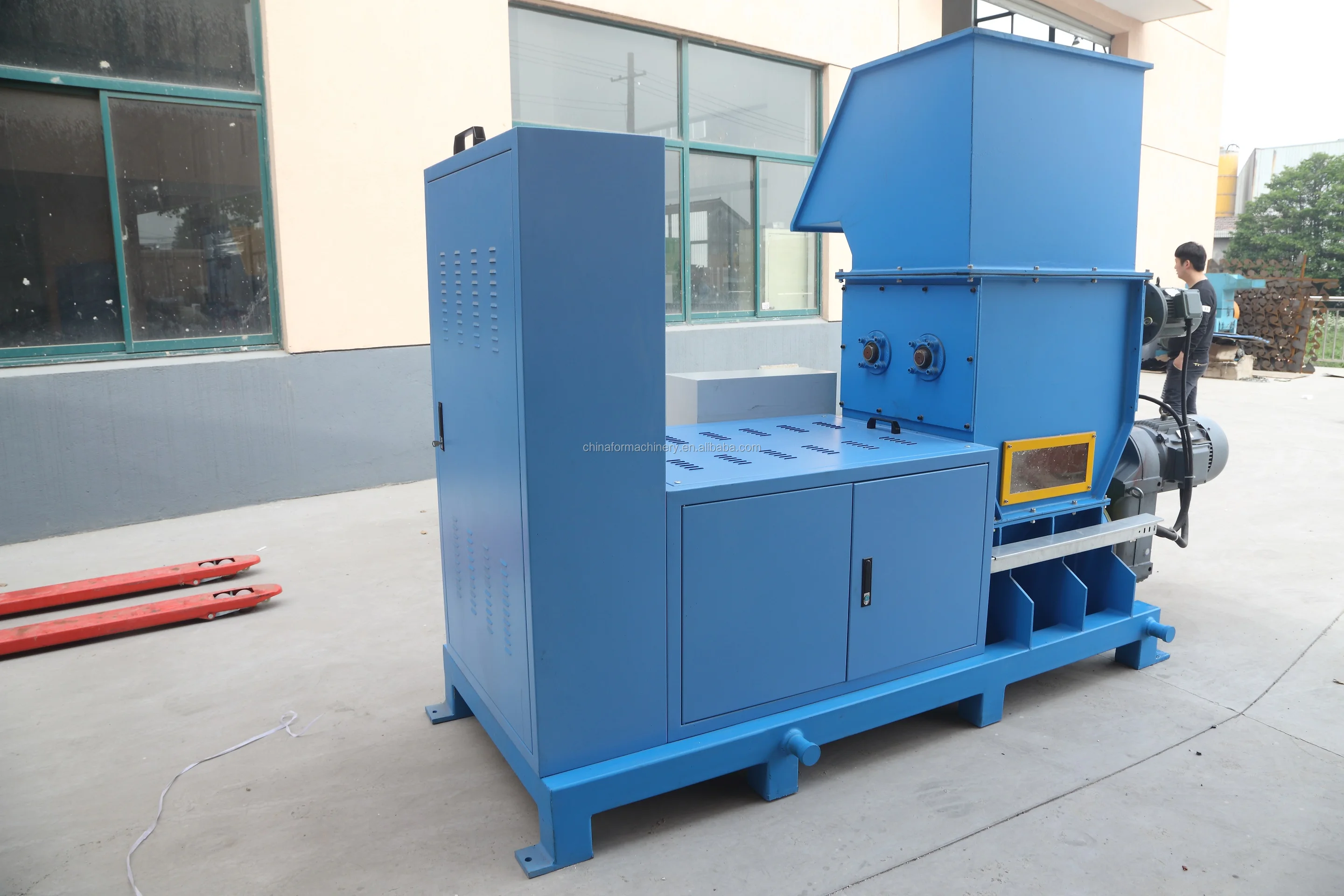

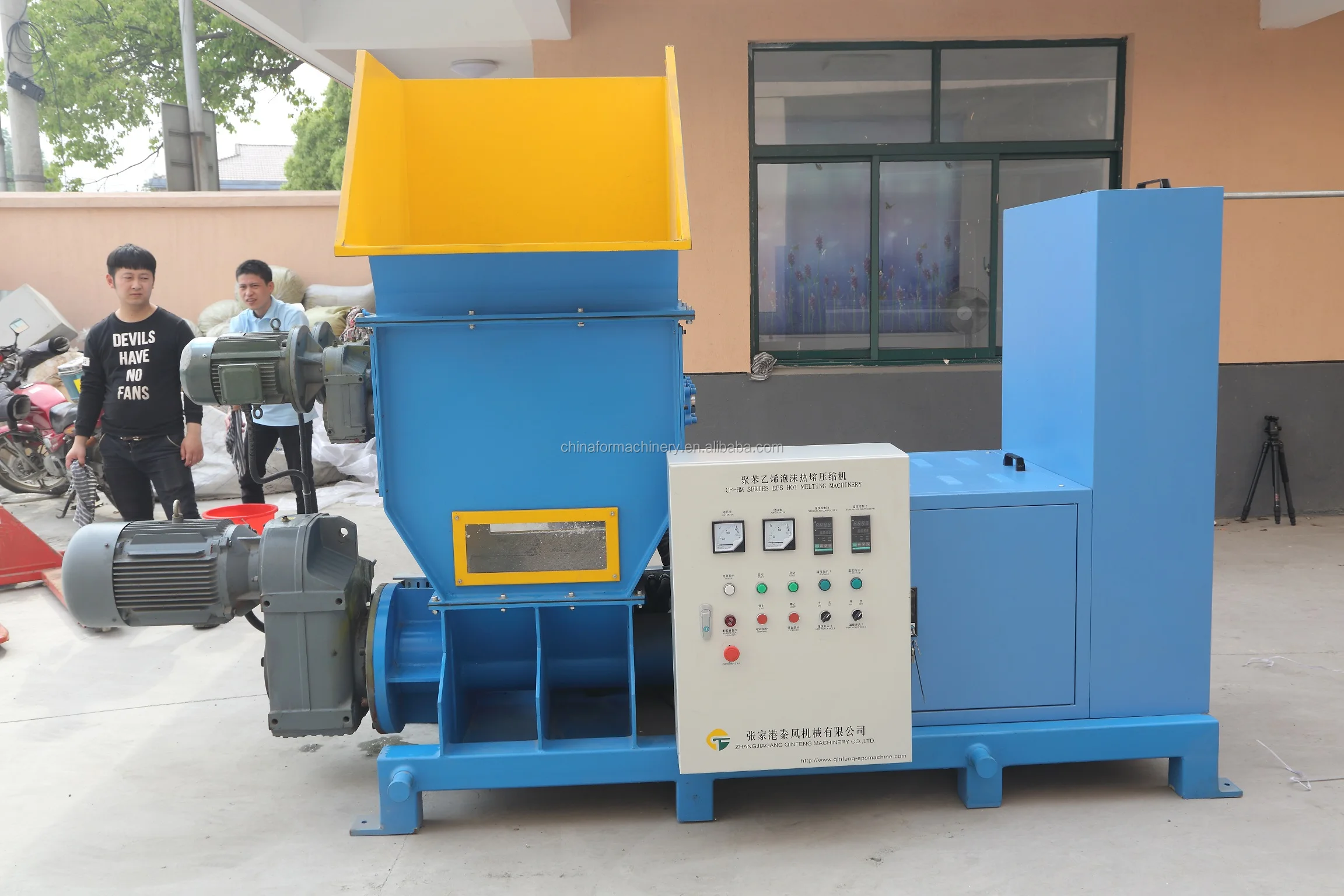

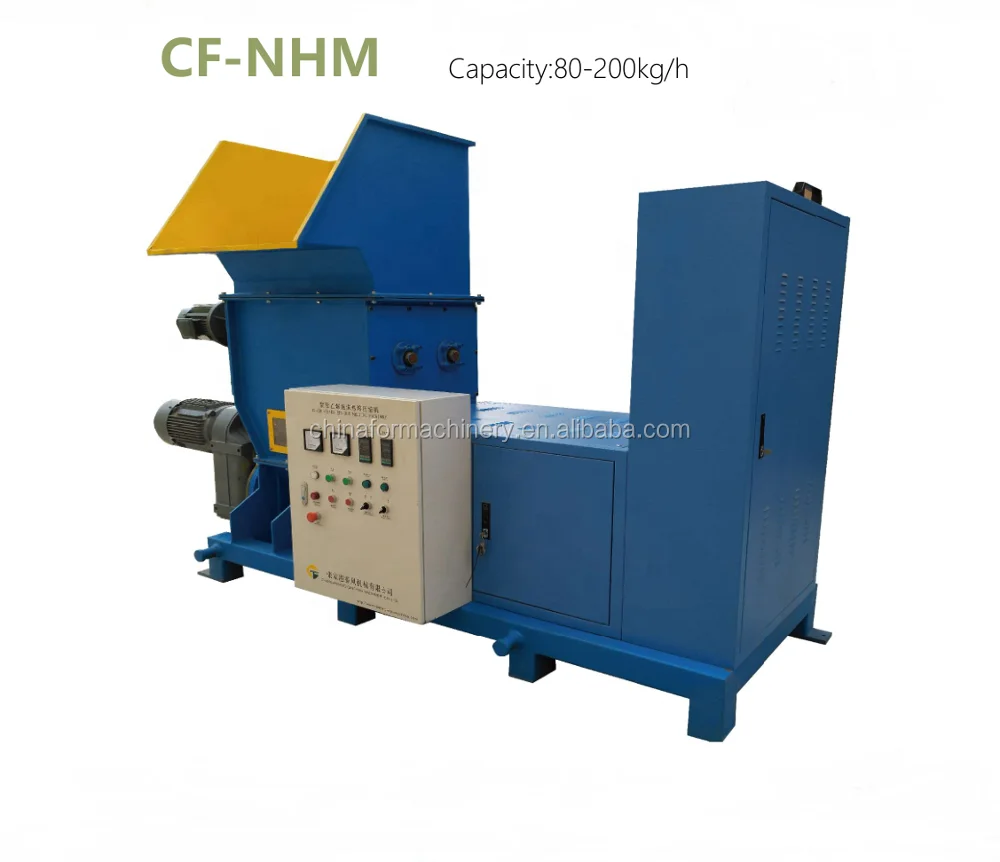

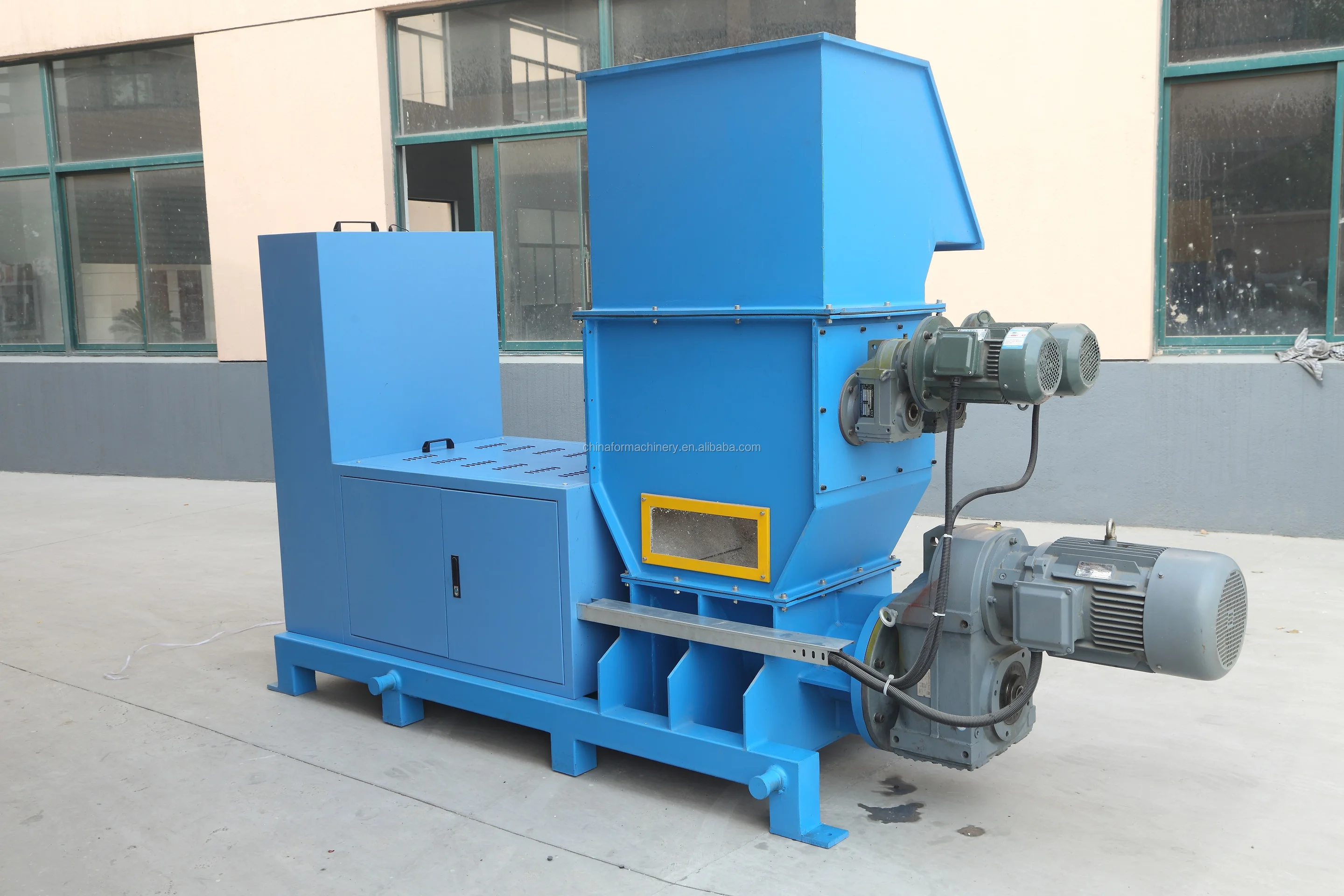

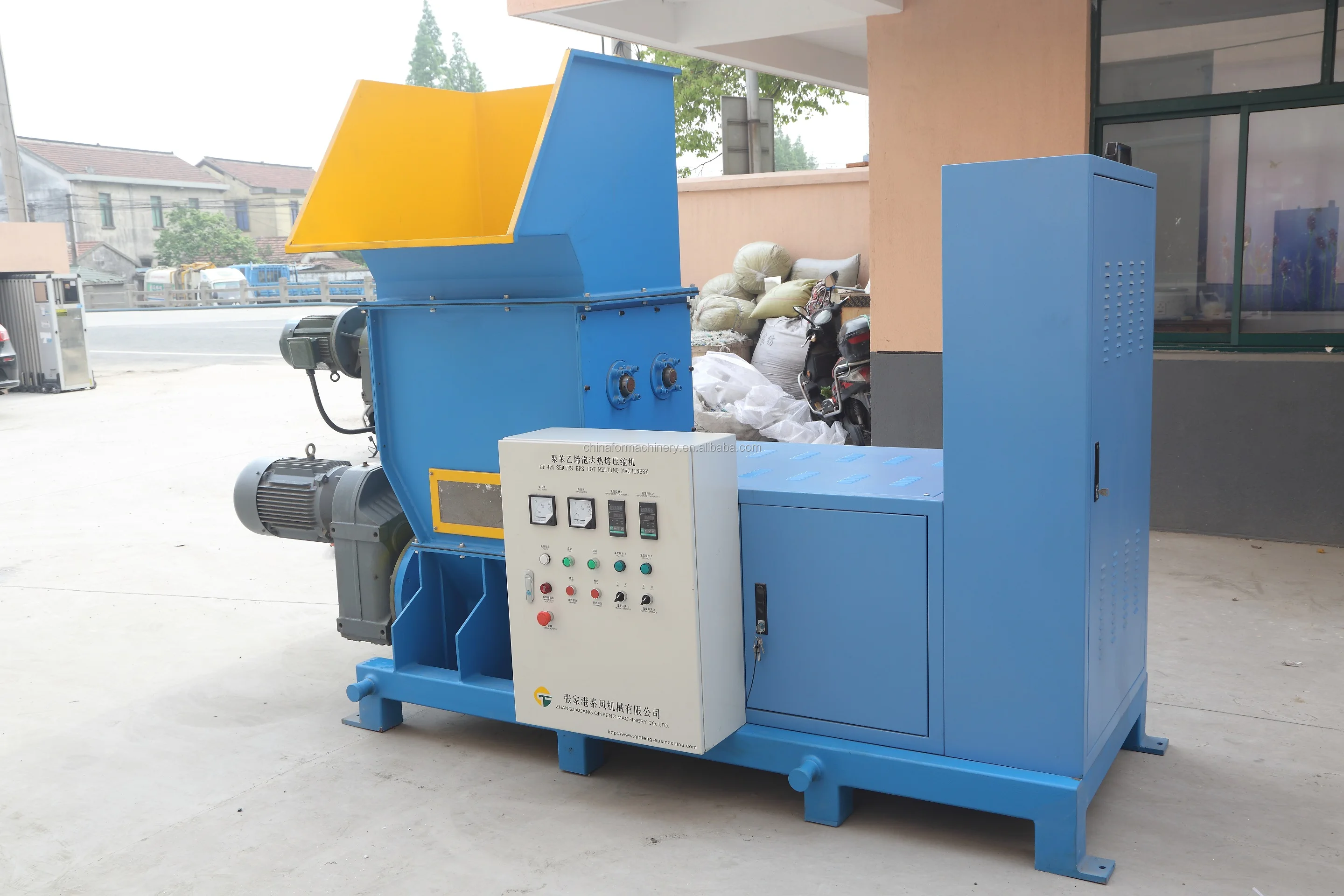

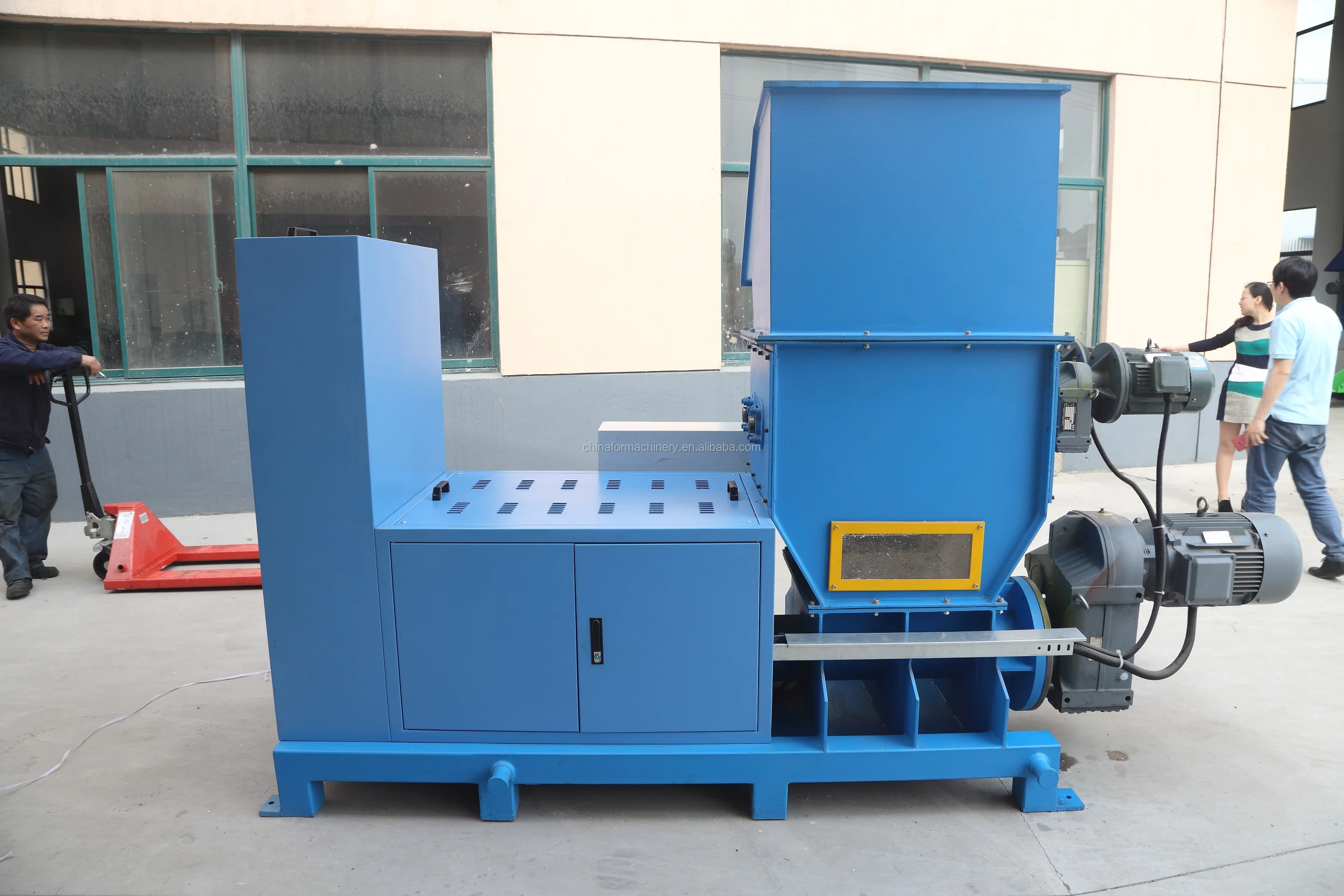

Plastic melter densifier CF-NHM 200
Related Products
Packing&Shipping
FCL delivery, directly wrap film package packing;
LCL, wrap with wrapping film first, then pack in wooden case, the wooden case is fumigation-free, in line with export requirements.
(The equipment can be packaged according to customer's requirement)FOB Shanghai
After Sales Service
Company Introduction
Zhangjiagang Chinafor Machinery Co.,Ltd is located near the “Golden Waterway of the YangTze River” in the city of ZhangJiaGang,two hours drive from ShangHai Pudong International Airport.Zhangjiagang Chinafor Machinery Co.,Ltd is a professional manufacturer and trader specializing in EPS recycling machinery,Plastic Mixing,Plastic Bottle Recycling,Plastic Extruder,Plastic Shredders ,we producting many types of recycling machine for waste recycling.Our boss has been a mechanical engineer for over twenty years.Chinafor Machinery is the leading on the market for the waste compactors, with the extensive knowledge and experience, we continuous development the compactor machine for waste materials and export to different countries. Zhangjiagang Chinafor Machinery Co.,Ltd Warmly welcome you visit and let’s make the win-win cooperation to build a good future for the earth.
Welcome to inquiry and visit our company!
