Pet Bottles Flakes Granulating Pelleting Line/Recycled Plastic Granules Extrusion Machine

FOB Reference Price:Get Latest Price
$45,062.00 - $80,062.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
CF-PZ
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Chinafor
Condition:
New
Certification:
CE
Warranty:
1 YEAR
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Key Selling Points:
Automatic
Applicable Industries:
Hotels, Building Material Shops, farms, restaurant, HOME USE, Construction works , recycling industry
Certificate:
CE
Name:
Recycled Plastic Granules Extrusion Machine
Capacity:
400-500kgh
Function:
Plastic Recycling Granulation,Used waste materials Recycling
Keyword:
Pet Bottles Flakes Granulating Pelleting Line
Applicable material:
pp/pe/eps material,bottle blacks
Final product:
Dry granules
Product name:
Pelletizing line
Application:
bottle blacks, eps lumps
Color:
Customizable
Supply Ability
Supply Ability:
20 Set/Sets per Month Delivery time: 30 working days.
Packaging & Delivery
Packaging Details
Wooden case with film packing Pet Bottles Flakes Granulating Pelleting Line
Port
Shanghai
Picture Example:
package-img
package-img
Video Description
Product Description

Pet Bottles Flakes Granulating Pelleting Line/Recycled Plastic Granules Extrusion Machine

Product Application

    The Pet Bottles Flakes Granulating Pelleting Line is used for the PET bottles flakes, PP PE broken block material, the ideal equipment for material recovery and granulation of the film bottle after the pellet, and has the advantages of advanced design, compact structure, reasonable layout, stable operation, convenient maintenance, low noise and low energy consumption.

Detailed Images

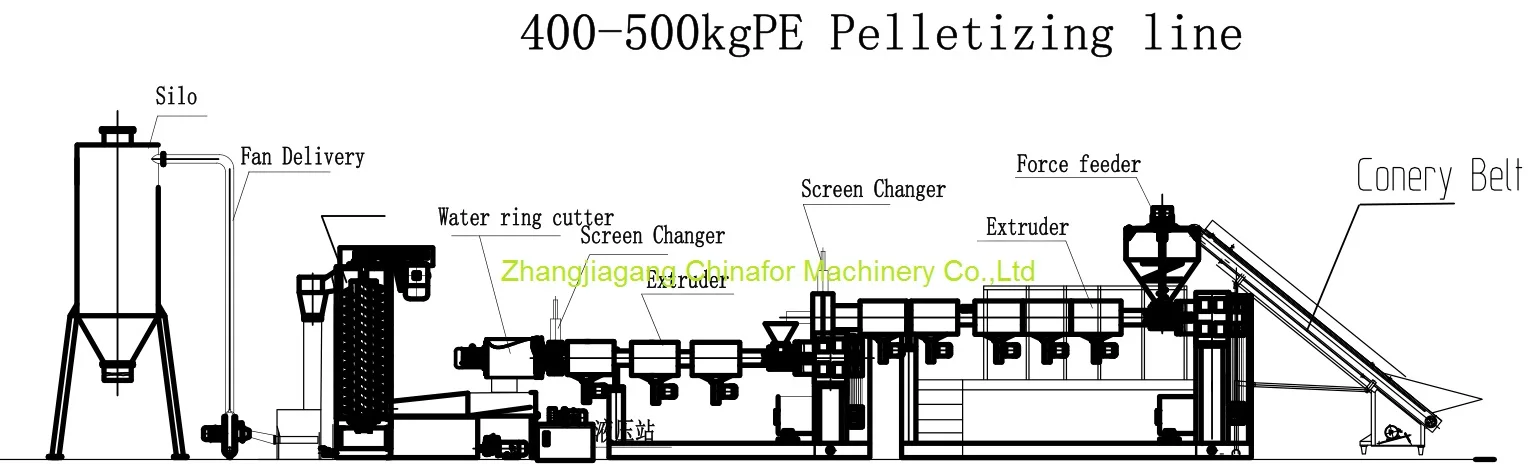

The Recycled Plastic Granules Extrusion Machine includes: belt conveyor, screw feeder, upper extruder, vacuum exhaust system, upper-stage double-station hydraulic screen changer, lower-stage extruder, lower-stage duplex Hydraulic screen change, water ring mold, water ring cutting system, fan delivery and electrical control system.

Belt conveyor
Material of belt: PVC Belt width: 800mm Belt length: 5000mm Power: 1.5kw reduction motor
Frame: steel frame structure
Movement mode: casters
Linkage with the material level meter of screw feeder to achieve automatic control

Screw feeder
Material of hopper: stainless steel
Hopper capacity: 200L
Feeding method: single screw feeding
Feeding capacity: ≥800kg/h
Feeding power: ac2.2kw
Feeding control: frequency conversion control
Upper step extruder
Material of barrel and screw: 38CrMoAl Barrel structure: feed section spiral groove, forced water cooling Screw structure: high efficiency double exhaust, mixing Center height: 1200mm Screw diameter: 150mm L/D = 28 Barrel heating section: 7
Barrel heating power: ≈48kw Heater: cast aluminum heater Heater cover: stainless steel cover Barrel cooling fan: 7×180w Screw speed: 90rpm Reducer: high efficiency reducer with hard tooth surface Driving power: 132kw frequency conversion Drive coupling: direct coupling with high efficiency coupling
Dual vacuum exhaust system
Vacuum pump: 3kw Efficient exhaust to ensure material quality Exhaust form: vacuum water filtration Vacuum chamber: specially designed Vacuum cover: aluminum alloy Vacuum tube: high temperature, high pressure rubber tube
Upper double-station screen changer
               (Jingcheng mould)
Model: φ250 single board Filter area: round (φ250) mm Withstand the highest pressure of the melt: ≤20Mpa Filter stencil: double station Double station moving speed: ≤ 2 seconds Material: 38CrMoAl Heating power: 16kw 2 high pressure oil pipes
Lower extruder
Barrel, screw material: 38CrMoAl Barrel structure: spiral section of feed section, forced water cooling Screw diameter: 150mm L/D=11
Barrel heating section: Zone 3 Barrel heating power: 21kw Heater: ceramic heater Heater cover: stainless steel cover Barrel cooling fan: 3×180w Gearbox: Efficient hardened gearbox Drive power: AC 55kw frequency conversion Drive connection: high efficiency coupling direct connection
Lower double-station screen changer
             (Jingcheng mould)
Model: φ250 single board Filter area: round (φ250) mm Withstand the highest pressure of the melt: ≤20Mpa Filter stencil: double station Double station moving speed: ≤ 2 seconds Material: 38CrMoAl Heating power: 16kw 2 high pressure oil pipes
Water ring mould
Mold material: 40Cr
Template material: 38CrMoAl Discharge hole: φ3×48
Heating power: 6kw
Special heating of the template core
Water ring cover connection cover material:aluminum alloy
Water ring cutting system
1, water ring cutting system Water ring cover material: stainless steel Water circulation pump: 4kw Granulating motor: 3kw Number of cutters: 4 Grain cutting control: ABB Inverter Movement of water ring: roller movement 2, tank + water tank Water tank and water tank material: stainless steel Water level control: automatic high water level overflow 3. Centrifuge dehydrator Dehydrator material: stainless steel Power of the dehydrator: 3kw Speed: 1480rpm Special design of dehydrated rotor and blade Special design of dehumidification fan Couplings: Lovejoy, USA Bearing: SealMaster, USA
Fan delivery
Silo material:SS304 Silo capacity:1000L Delivering pipe:φ100mm Fan power:3kw
Control System
Breaker: TENGEN Contactor: Schneider Solid state relay: GOLD Frequency converter: ABB Temperature control table: OMRON PLC: Delta Touch screen: Delta
Related Products

Double-stage granulation line
 200-300kg/h

Single-stage granulation line
200-300kg/h

Single-stage granulation line
400-500kg/h

Our Company
Zhangjiagang Chinafor Machinery Co.,Ltd is a professional manufacturer and trader specializing in Waste plastic recycling machine,Plastic Mixing,Plastic Bottle Recycling,Plastic Extruder,Plastic Shredders ,we producting many types of recycling machine for waste recycling.Our boss has been a mechanical engineer for over twenty years.
Packing & Delivery

Way Of Packing:

FCL delivery, directly wrap film package packing;

LCL, wrap with wrapping film first, then pack in wooden case, the wooden case is fumigation-free, in line with export requirements.

(The equipment can be packaged according to customer's requirement)FOB Shanghai
