EPS recycled hot melter/plastic melter densifier/hot melting machine for waste plastic

FOB Reference Price:Get Latest Price
$10,008.00 - $14,508.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
CF-HM200
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Chinafor
Condition:
New
Certification:
CE,Certificate of low noise
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Key Selling Points:
High Productivity
Applicable Industries:
Hotels, Building Material Shops, Farms, Restaurant, Home Use, Construction works , recycling industry
After Warranty Service:
Video technical support, Online support, Field maintenance and repair service
Local Service Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, South Korea, Chile, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan
Showroom Location:
None
Control System:
Touch Screen+PLC
Capacity:
80-100kg/h
Name:
EPS recycled hot melter/plastic melter densifier
Colour:
Optional
Power:
29.4KW
Plastic Type:
EPS,EPE,EPP
Material:
Carbon Steel
Final product:
hot melted ingot
Color:
Optional
Product name:
Hot melting machine for waste plastic
Supply Ability
Supply Ability:
10 Set/Sets per Month Delivery time: 30 working days
Packaging & Delivery
Packaging Details
Wooden case with film packing EPS foam hot melting densifier
Port
Shanghai
Picture Example:
package-img
package-img
Product Description
Zhangjiagang Chinafor Machinery Co., Ltd. is always specialized in waste briquetting machines for various waste EPS, EPP, EPE,XPS, PUR, PSP, cans, films and bottles. We produce a wide range of waste recovery compressors. All compressors produced by Chinafor Machinery are produced in Qinfeng's own factory in Zhangjiagang,China.

Plastic melter densifier Working Principle:

The twin shaft crushing blades are two parallel blades shaft with different rotation direction , each blade shaft has 18 blades and driven by the gear box to crush material that will be conveyed to the barrel through the screen. The material will be sent by the high speed rotary screw to the heating barrel. Then they will be melted under high temperature extruded to expected sharps.

EPS recycled hot melter Crusher technical :

The tilted feeding hopper is easy to put the EPS material in,and the material won't be pushed out during the crushing process.
The recycled plastic hot melting machine use twin shaft crushing blades, two parallel blade shafts symmetrically fixed with blade ,the blade on the two blade shafts is dislocation arrangement, and the blade of each shaft is evenly arranged in the axis of the knife with arithmetic point of view in the same direction. The first blade and the last blade of each shaft has a 90°angle.

EPS hot melter Features:

1,Twin shaft crushing blades, this hot melting machine adopts manual feeding, the material will be crushed by the twin shaft blades and conveyed to the barrel of the main machine through the screen.
2,The screw of the main machine can convey the heating the material to melt condition ,then extrude them and hydraulic blade cut them to pieces for easy storage and transportation.
3,The shape of the products can be designed according to customers' requirement.
Product Paramenters

Plastic densifier CF-HM 200

The following sizes are for reference and special requirements can be discussed in detail.
Model
CF-HM-200 plasatic melter densifier
Screw diameter
φ197 mm
Screw distance
150 mm
Screw speed
110 r/min
Capacity
100~120Kg/h
Extrusion center height
326 mm
Motor power
15KW
Crusher motor power
2.2kwx2
Heating power
10kw
Crusher blades quantity
2Sets 9sets+10sets
Crusher rotation speed
100r/m
Size L×W×H
2800×1580×1950
Working Process:

Advantages.

1. Lower noise——machine drives by gearbox,not the belts.
2.Safe——There is a protective cover at the outlet;The inlet height is in accordance with safety standards;The reducer drives themachine to operate safely and efficiently,And there is emergency stop and the overload switch in the control system.
3.Have nice after-sale service——Provide installation and debugging if the customer needs;12 months warranty.
4.Cost-effective——We offer the customer good quality machines, but in a very reasonable price.
5.Long life——After one year , we will serve the customer continually and the machine can running well for a long time. Ourfirst machine is still running well now.
6.Optional Electrical elements——Inverter(when install inverter,it can deal with different type material:EPS,EPP,EPE.) and the other elements we can set in the machine according to the customer’s requirement.

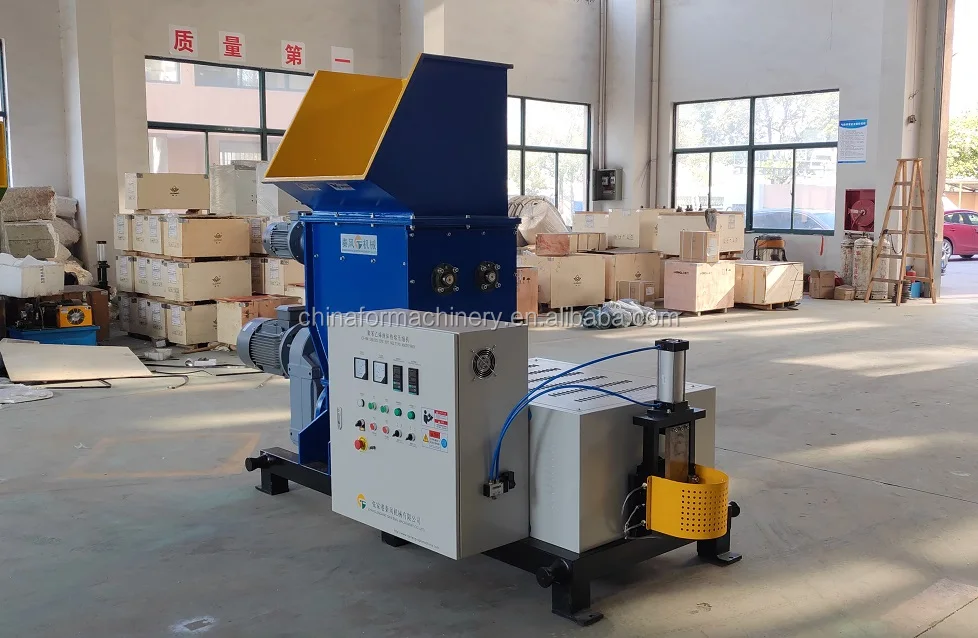

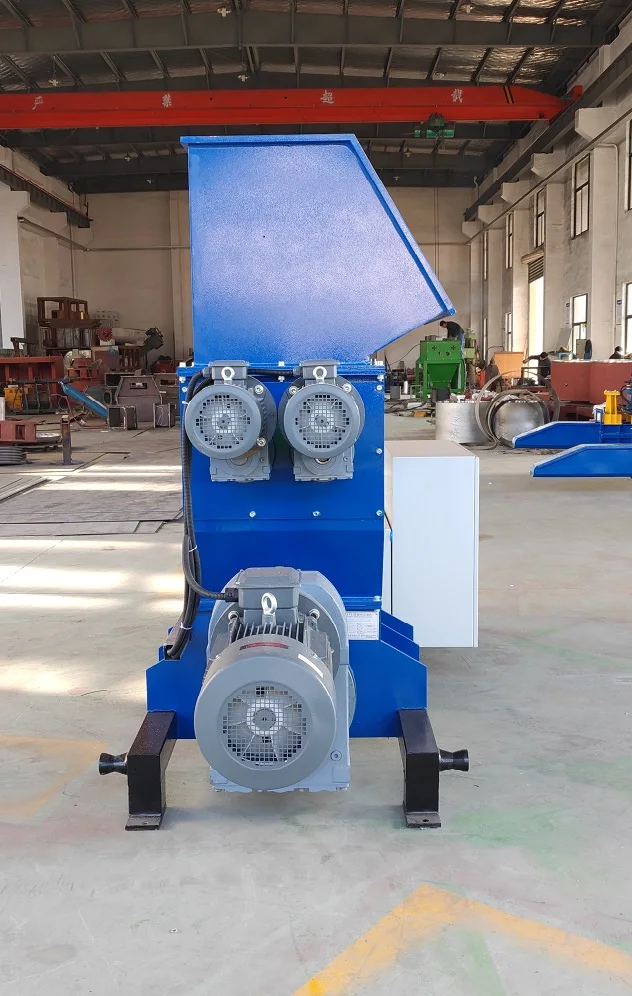

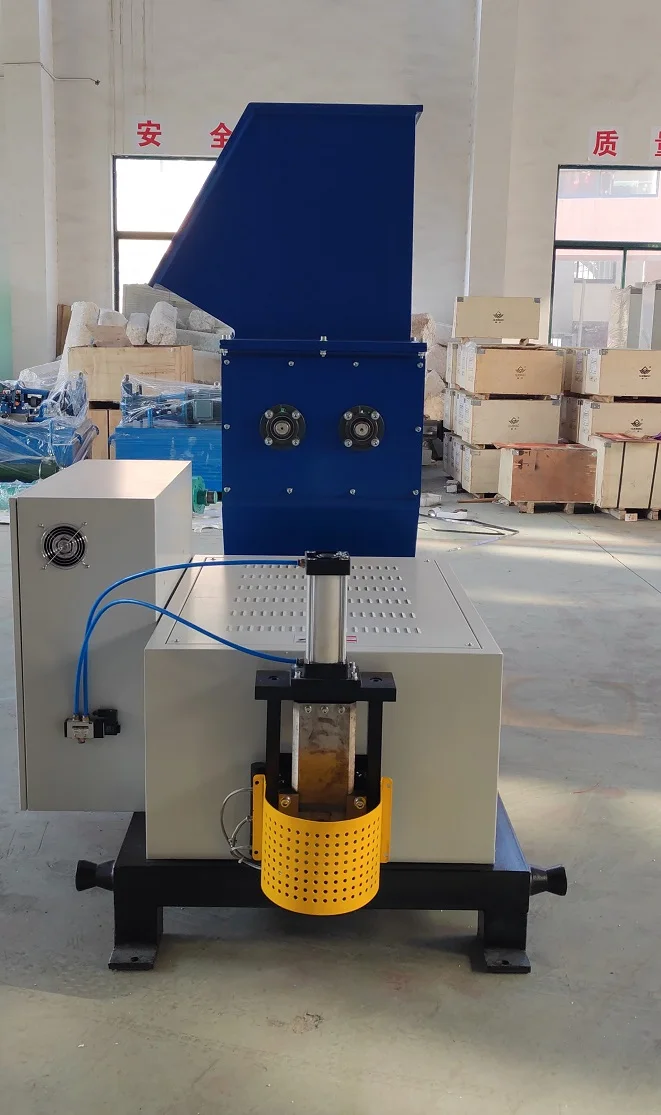

Detailed Images
Related Products
Company Introduction
Zhangjiagang Chinafor Machinery Co.,Ltd is located near the “Golden Waterway of the YangTze River” in the city of ZhangJiaGang, two hours drive from ShangHai Pudong
International Airport.
Zhangjiagang Chinafor Machinery Co.,Ltd is a professional manufacturer and trader specializing in EPS recycling machinery,Plastic Mixing,Plastic Bottle Recycling,Plastic Extruder,Plastic Shredders ,we producting many types of recycling machine for waste recycling.Our boss has been a mechanical engineer for over twenty years.
Chinafor Machinery is the leading on the market for the waste compactors, with the extensive knowledge and experience, we continuous development the compactor machine for waste materials and export to different countries. Zhangjiagang Chinafor
Machinery Co.,Ltd Warmly welcome you visit and let’s make the win-win cooperation to build a good future for the earth.
After Sales Service
Packing&Shipping
FCL delivery, directly wrap film package packing;
LCL, wrap with wrapping film first, then pack in wooden case, the wooden case is fumigation-free, in line with export requirements.
(The equipment can be packaged according to customer's requirement)FOB Shanghai
Welcome to visit our company!
