High quality HDPE pipe single shaft shredder industrial plastic bottle shredder

FOB Reference Price:Get Latest Price
$1,000.00 - $30,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
CF-SS
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China
Plastic Type:
All kinds of materials
Production Capacity (kg/h):
1000 kg/h
Brand Name:
QINFENG
Use:
Waste Material Crusher
Voltage:
380V/50Hz/3Phase
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
Applicable Industries:
Hotels, Building Material Shops, Farms, Restaurant, Home Use, Food Shop, Recycled Industry
Key Selling Points:
Multifunctional
After Warranty Service:
Video technical support, Online support, Field maintenance and repair service
Local Service Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Japan, Australia, Morocco, South Korea, Chile, Romania
Showroom Location:
None
Function:
Raw Material Crushing
Application:
All kinds of materials
Type:
Powerful Plastic Shredder
Color:
Buyer's Requirement
Capacity:
100-2600kg/h
Usage:
Recycled Industry
Electric:
SCHEIDER, SIEMENS
Other name:
industrial plastic bottle shredder
Keyword:
High quality HDPE pipe single shaft shredder
Shaft Design:
Single
Supply Ability
Supply Ability:
1 Set/Sets per Month Efficient,Fast,Guaranteed
Packaging & Delivery
Packaging Details
wooden case and pe film wrapping High quality HDPE pipe single shaft shredder industrial plastic bottle shredder.
Port
shanghai port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 30 To be negotiated
Product Description

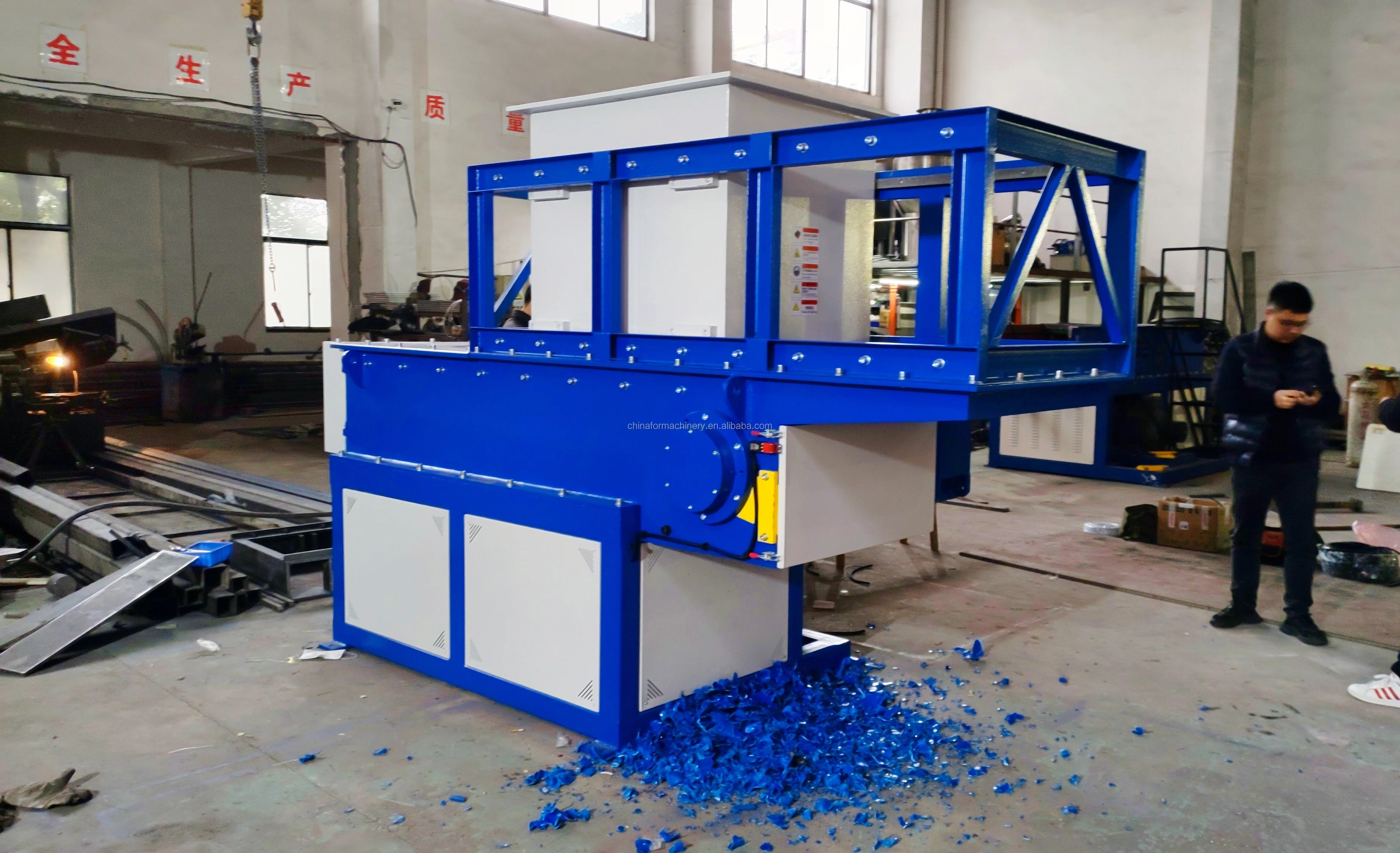

CF-SS series HDPE pipe single shaft shredder is designed to meet the waste recycling requirements of various industries, and is suitable for plastic, paper, wood,Fiber, rubber, domestic garbage recycling, etc., there are many types of recyclable materials. According to the material feed size and output,And the output size of the final product to configure the optimal solution for the customer.
This series of waste bottle shredder uses Siemens programming control system.Can be controlled automatically, with start, stop,reverse and overload automatic reverse control functions, with low speed, high torque, low noise.

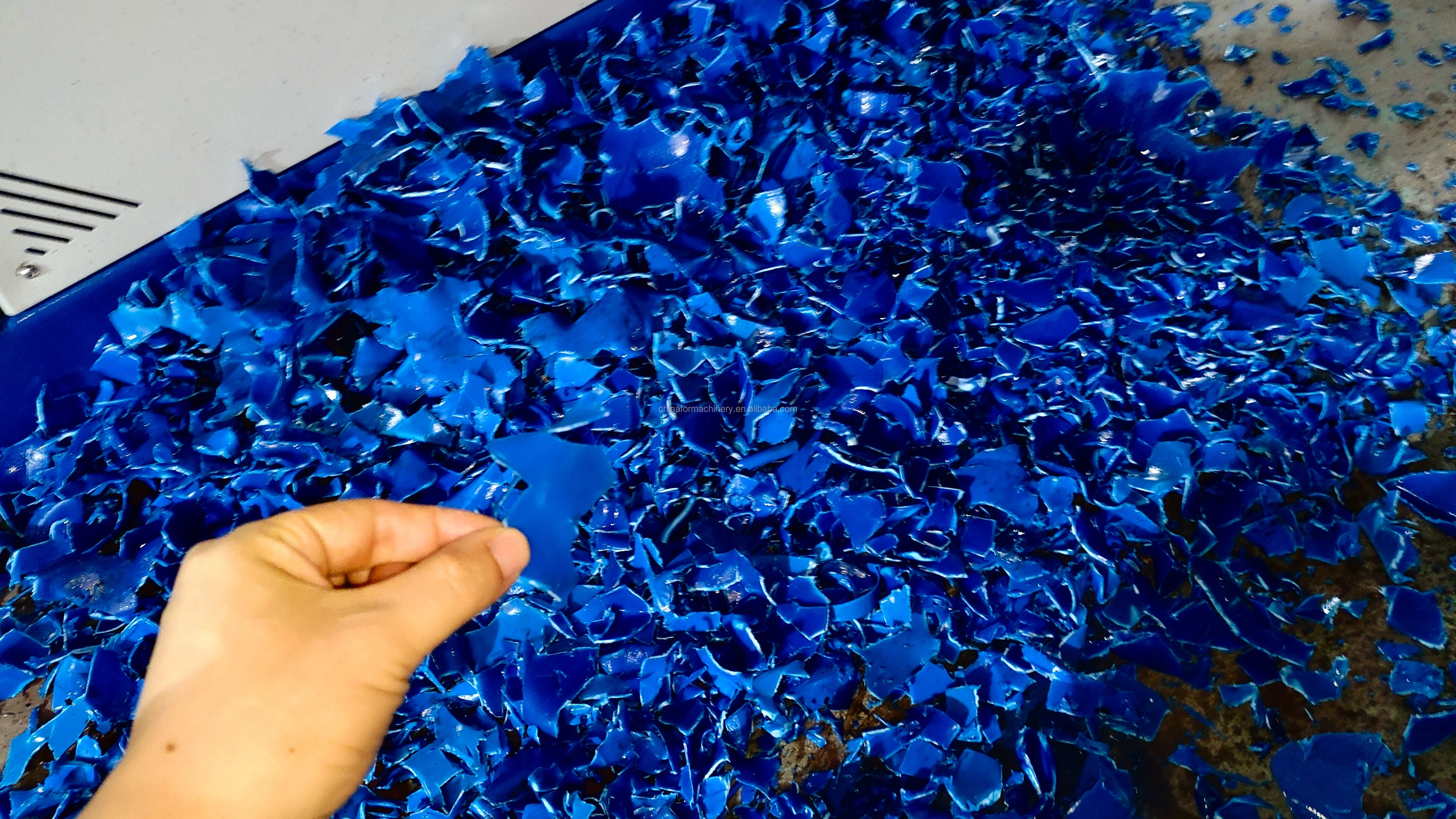

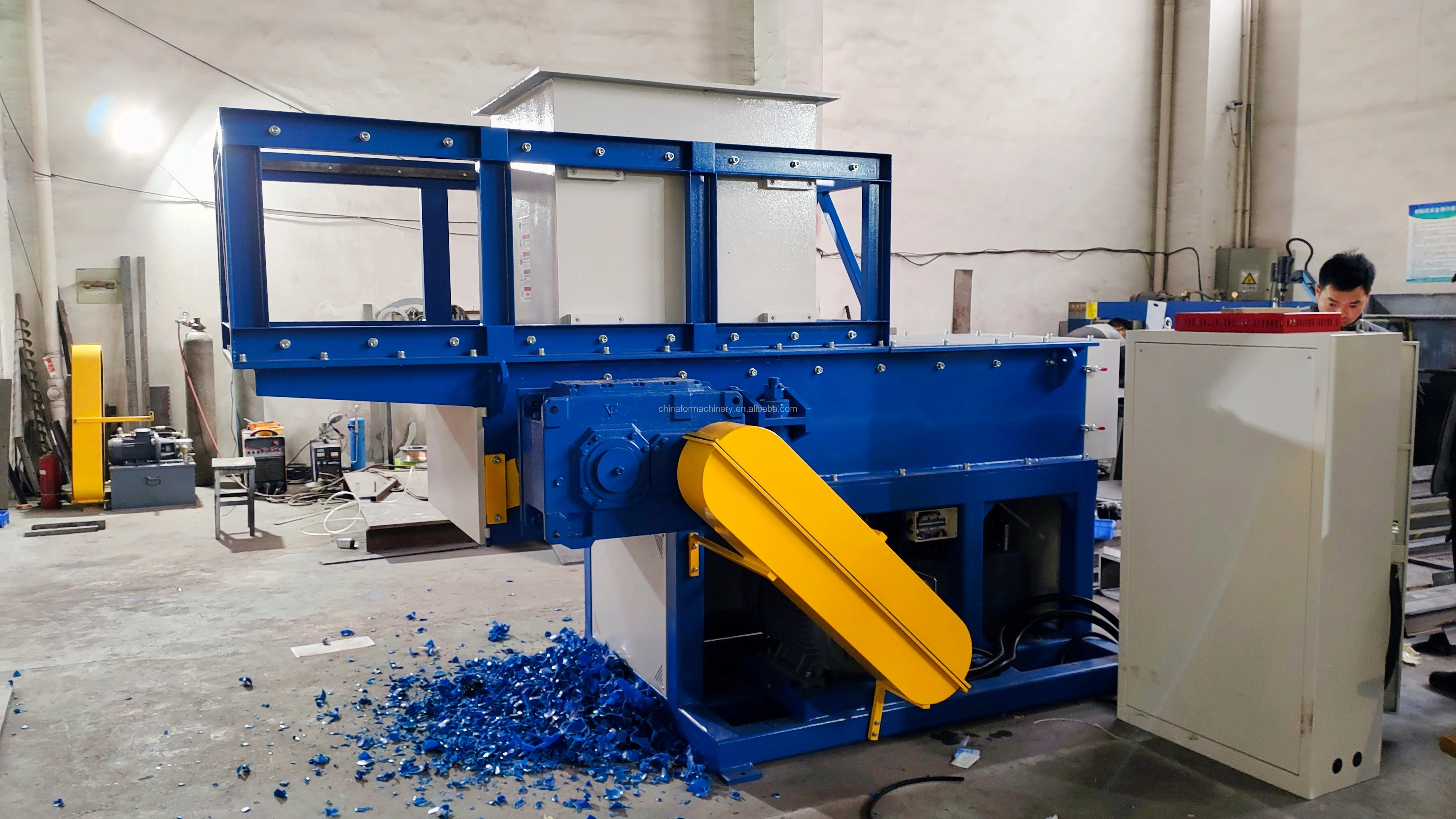

CF-SS series plastic shredder machine can be used for HDPE, PP-R, PVC, ABS, and other plastic pipes, profiles and pipe materials, the recycling of headstock and waste materials.The HDPE pipe single shaft shredder is composed of a motor, a hard toothed surface reducer, a rotating knife shaft, an imported moving knife, a fixed knife, a frame, a machine base, a box, a hydraulic cylinder, an oil pump, a cylinder, a working platform and other major structures.The size of the material shredded by the single-shaft shredder is 5 ~ 12㎝, and then crushed by the secondary conveyer and the crusher, which can meet the granulation requirements and directly perform granulation production.
When the plastic shredder is working, the materials are advanced by hydraulic cylinders and equipped with clamping devices. Adopt Siemens programming control system, which can be controlled automatically. It has start, stop, reverse and overload automatic reverse control functions. It has the characteristics of low speed, large torque and low noise.
Detailed Images
Shredding principle

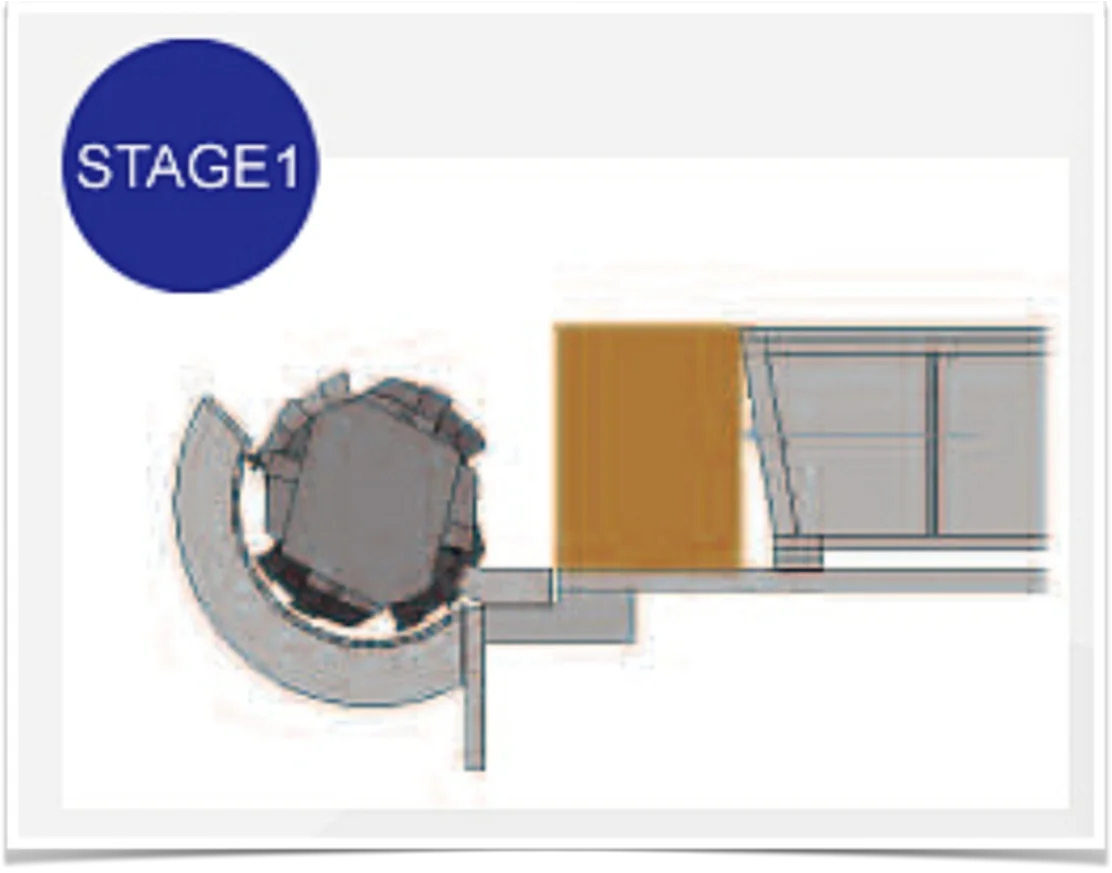

Push box pushes the material
towards the blade rotor
Blades shred the material

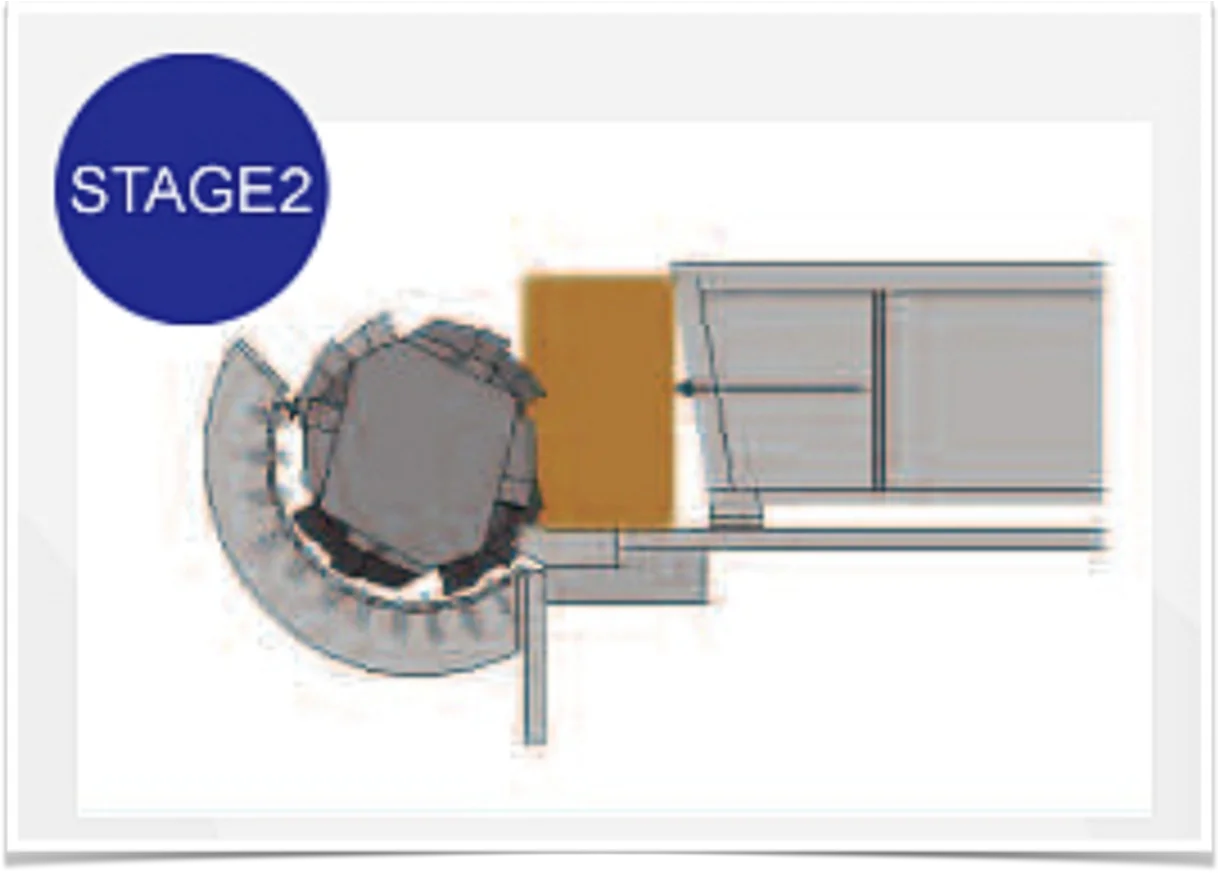

The push box continues to push
the material towards the blades rotor to increase output
Blades.

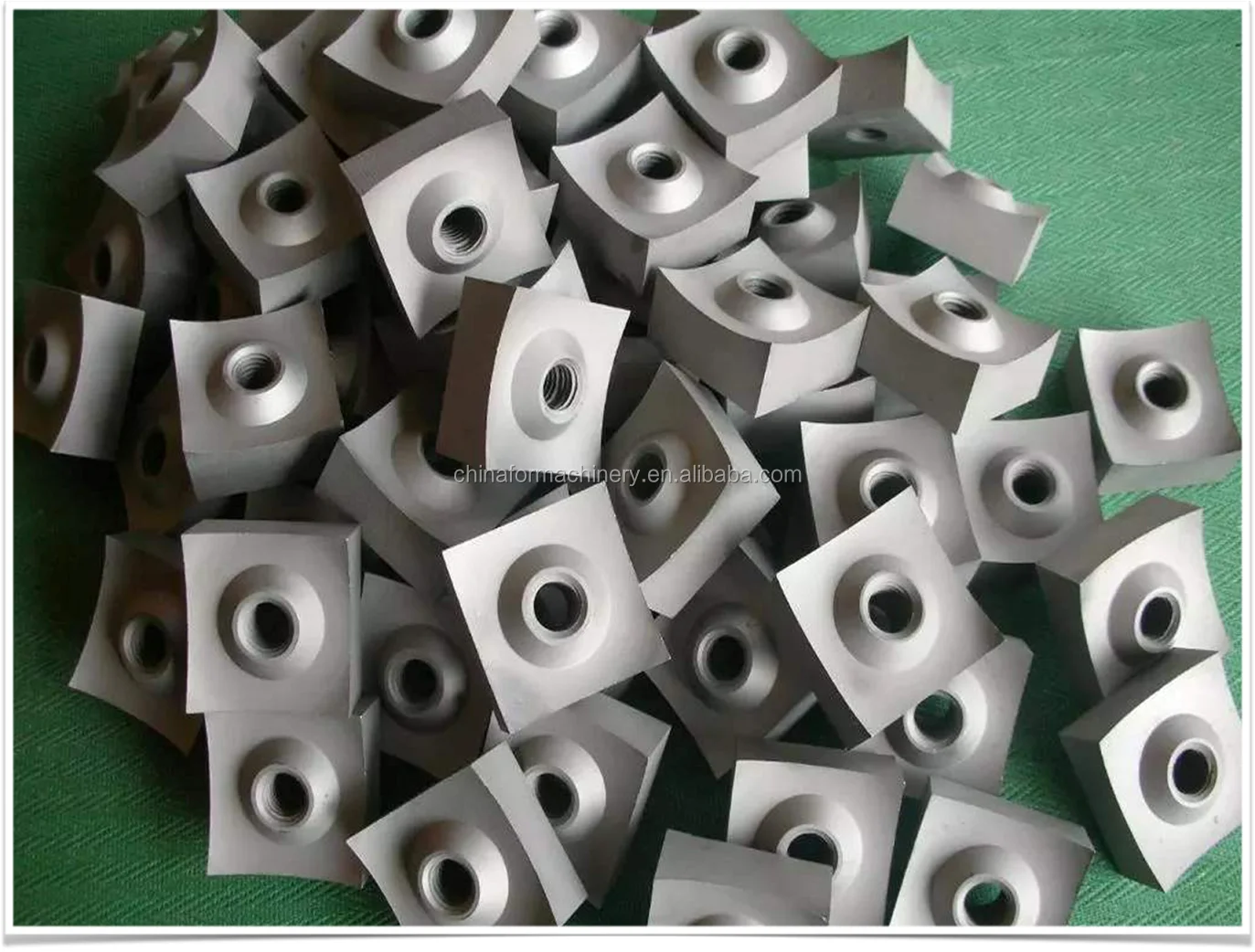

The blade is made of D2, and all four corners can be used.

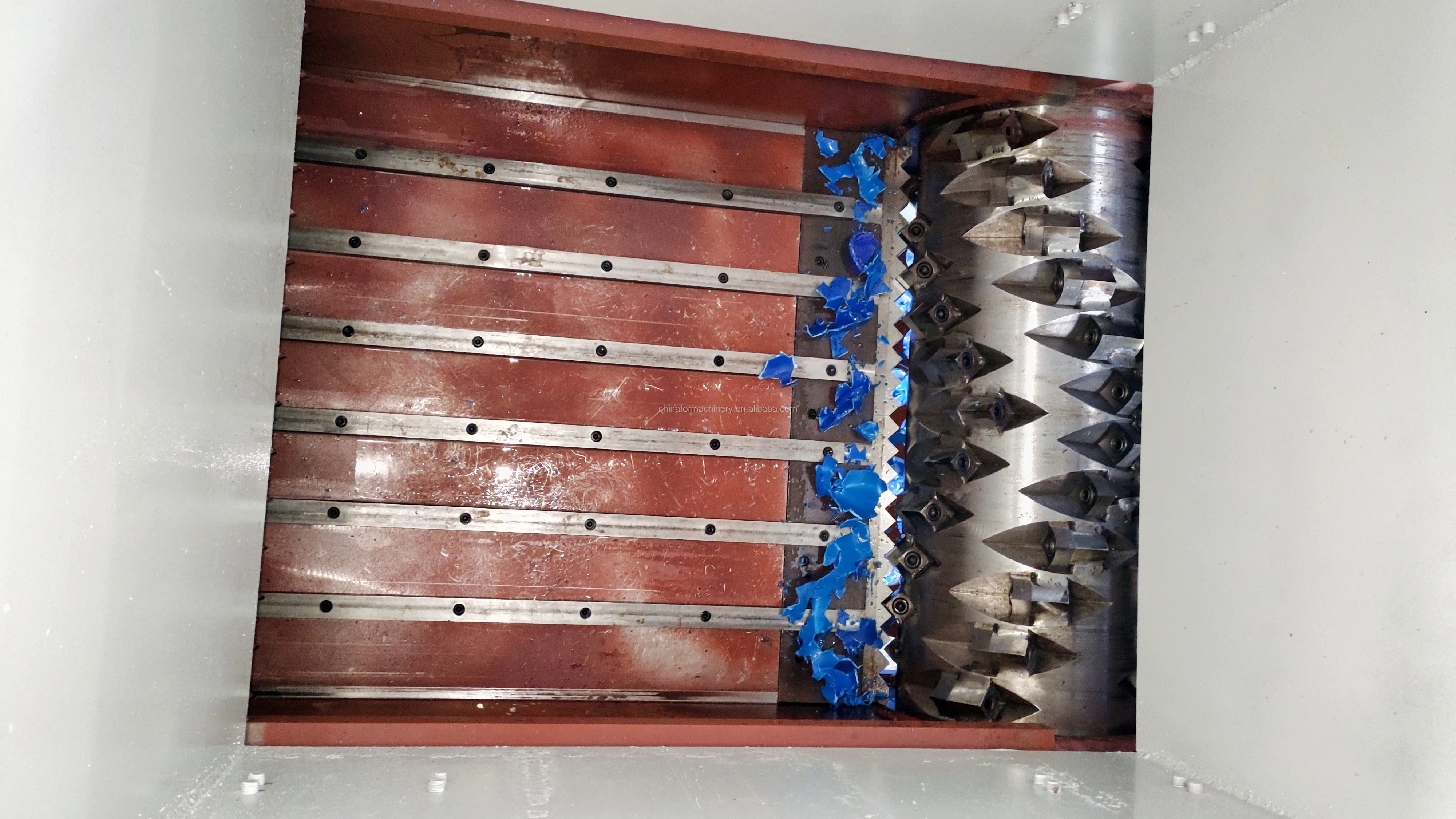

Blader rotor
High-performance blades rotor
This kind of blades rotor is commonly used for PE, PP, PET materials,Hard materials and soft feet in paper, wires and cablesShred.
Hard blades rotor
This blades rotor is for ABS,
PC,Designed with hard materials
such as nylon.Props sink deeper
and cut less in a single shot.
Reduce impact and noise.
Film blades rotor
The blades rotor adds a translation knife to effectively cut the film.In addition, the blades rotor is welded with a
wear-resistant layer, which increases the life of the knife stick.
Related Products
Company Introduction
Zhangjiagang Chinafor Machinery Co.,Ltd is a professional manufacturer and trader specializing in EPS recycling machinery,Plastic Mixing,Plastic Bottle Recycling,Plastic Extruder,Plastic Shredders ,we producting many types of recycling machine for waste recycling.Our boss has been a mechanical engineer for over twenty years.
After Sales Service
Packing&Shipping
FCL delivery, directly wrap film package packing;LCL, wrap with wrapping film first, then pack in wooden case, the wooden case is fumigation-free, in line with exportrequirements.
(The equipment can be packaged according to customer's requirement)FOB Shanghai
Welcome to inquire and visit our company!
